5615701100
LED CBI 5MM YELLOW TH PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

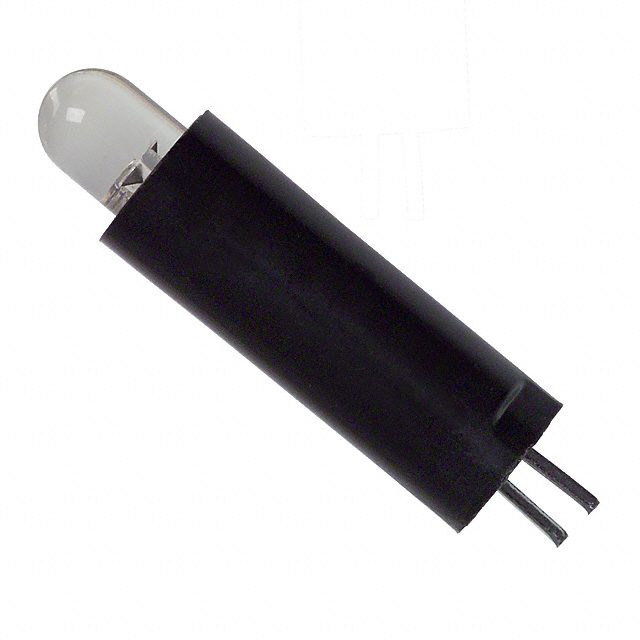

Dialight 561 Series LED Circuit Board Indicator, part number 5615701100. This single, yellow LED features a clear, domed top lens with a 5mm (T-1 3/4) diameter and a 24° viewing angle. Engineered for reliable performance, it operates at a forward voltage of 2.2V and a current of 20mA, delivering a typical luminous intensity of 140mcd at a peak wavelength of 583nm. The through-hole mounting type ensures secure PCB integration. This component is commonly utilized in industrial automation, telecommunications infrastructure, and medical equipment. Supplied in bulk packaging.
Additional Information
Series: 561RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Yellow |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 140mcd |
| Configuration | Single |
| Viewing Angle | 24° |
| Lens Type | Clear |
| Wavelength - Peak | 583nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
