5615201050F
LED CBI 5MM GRN TH PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

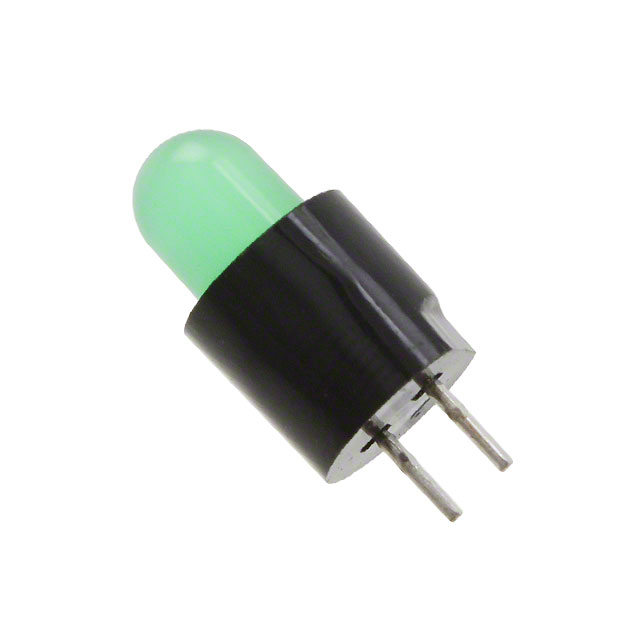

The Dialight 5615201050F is a single, diffused green LED Circuit Board Indicator from the 561 series. This T-1 3/4 (5mm) package features a round, domed lens and is designed for through-hole mounting. It operates at a typical forward voltage of 2.2V and a forward current of 20mA, delivering a millicandela rating of 34mcd with a peak wavelength of 563nm. The viewing angle is rated at 50°. This component is commonly employed in industrial automation, test and measurement equipment, and consumer electronics for status indication.
Additional Information
Series: 561RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 34mcd |
| Configuration | Single |
| Viewing Angle | 50° |
| Lens Type | Diffused |
| Wavelength - Peak | 563nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
