5614201055
LED CBI 7X2.5MM GRN TH PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

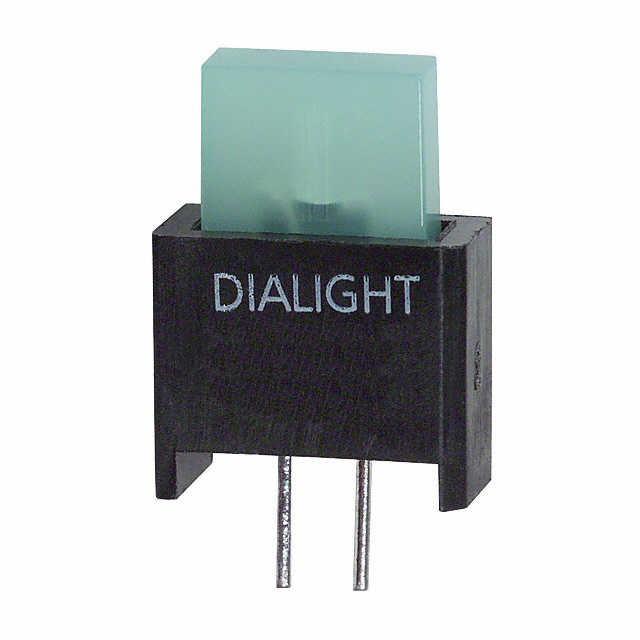

Dialight 561 Series LED Circuit Board Indicator, part number 5614201055, is a single, diffused green LED designed for through-hole mounting. This component features a rectangular, flat-top lens measuring 7.00mm x 2.50mm, providing a wide 100° viewing angle. It operates with a forward voltage of 2.3V and a recommended current of 20mA, delivering a typical millicandela rating of 2.5mcd at a peak wavelength of 565nm. This LED indicator is commonly utilized in industrial control systems, telecommunications equipment, and medical devices where reliable visual status indication is critical. Supplied in bulk packaging.
Additional Information
Series: 561RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green |
| Voltage Rating | 2.3V |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.5mcd |
| Configuration | Single |
| Viewing Angle | 100° |
| Lens Type | Diffused |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.00mm x 2.50mm |
