5614101055
LED CBI 7X2.5MM RED TH PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

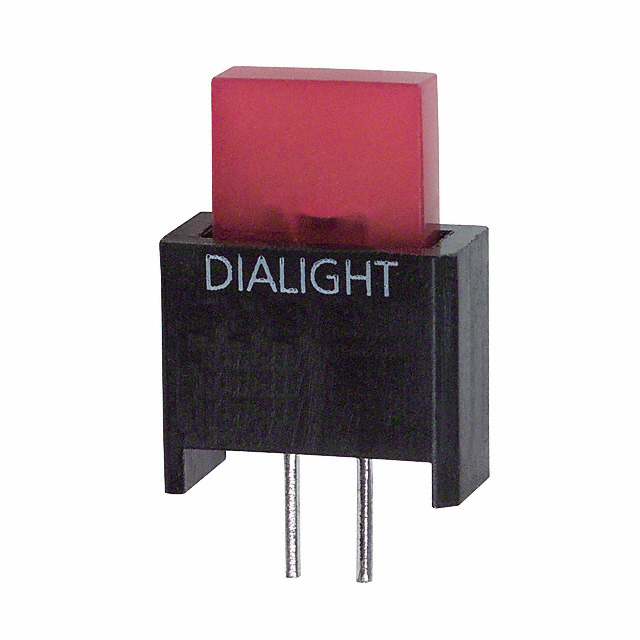

The Dialight 5614101055 is a single, red diffused LED Circuit Board Indicator from the 561 series. Featuring a rectangular, flat-top lens measuring 7.00mm x 2.50mm, this component is designed for through-hole mounting on printed circuit boards. It operates with a forward voltage of 1.9V and a forward current of 20mA, delivering a typical millicandela rating of 5mcd and a wide 100° viewing angle. The peak wavelength for this indicator is 635nm. This component is commonly utilized in industrial control, medical equipment, and consumer electronics applications demanding reliable visual feedback.
Additional Information
Series: 561RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 1.9V |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Single |
| Viewing Angle | 100° |
| Lens Type | Diffused |
| Wavelength - Peak | 635nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.00mm x 2.50mm |
