5612401100
LED CBI 5MM RED TH PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

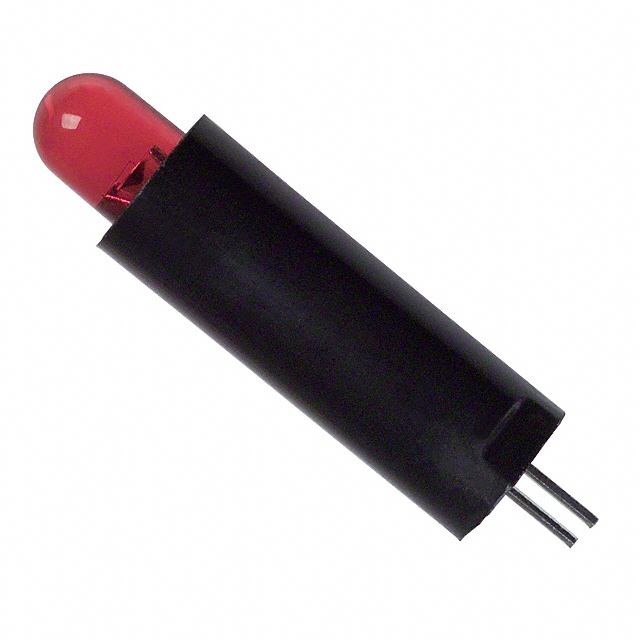

Dialight 561 Series LED Circuit Board Indicator, part number 5612401100. This single-chip component features a red, tinted, round, domed-top lens with a 5mm (T-1 3/4) diameter. It is designed for through-hole mounting and operates at a forward voltage of 2.2V and a forward current of 10mA, delivering a typical millicandela rating of 60mcd. The peak wavelength is 635nm, with a viewing angle of 35°. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication and visual feedback. Supplied in bulk packaging.
Additional Information
Series: 561RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 60mcd |
| Configuration | Single |
| Viewing Angle | 35° |
| Lens Type | Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
