5555301
LED CBI 2MM QUAD GREEN VERTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

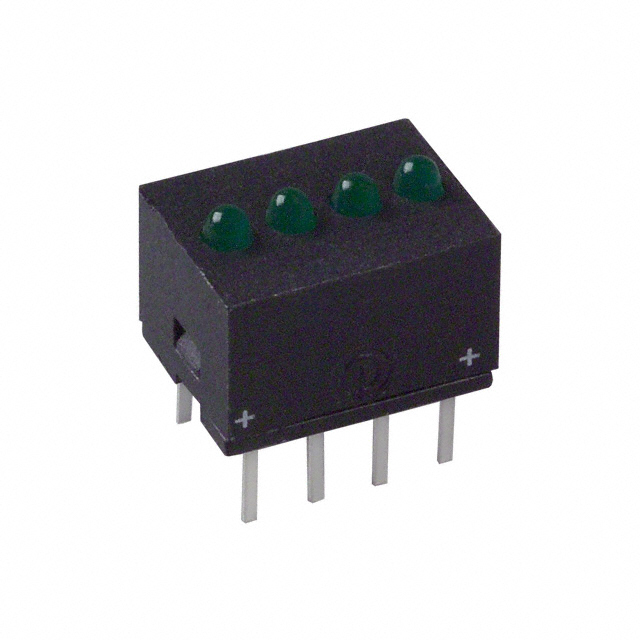

Dialight 555 Series LED Circuit Board Indicator, part number 5555301. This multi-element indicator features four wide, green LEDs, each with a clear, domed top lens measuring 2.00mm in diameter. Operating at a typical forward voltage of 2.4V and a forward current of 20mA, each LED provides a millicandela rating of 2mcd with a 35° viewing angle. The component is designed for through-hole mounting, facilitating direct integration onto printed circuit boards. Its compact, vertical arrangement is suitable for applications in telecommunications, industrial automation, and medical equipment where clear visual status indication is critical. The 5555301 is supplied in bulk packaging.
Additional Information
Series: 555RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green (x 4) |
| Voltage Rating | 2.4V |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | 4 Wide |
| Viewing Angle | 35° |
| Lens Type | Clear |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
