5555003
LED CBI 2MM QUAD RED VERTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

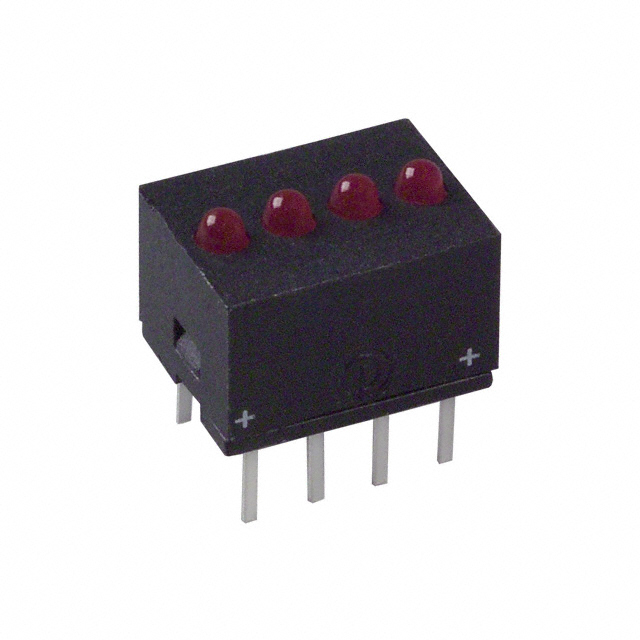

Dialight 555 Series LED Circuit Board Indicator, part number 5555003. This component features four wide, red LEDs with a clear, domed top lens, each measuring 2.00mm in diameter. Designed for through-hole mounting, it operates at a 5V rating with a typical current draw of 6mA per LED. The peak wavelength for the red LEDs is 655nm, providing a luminous intensity of 0.6mcd and a viewing angle of 35°. This CBI is suitable for applications in industrial automation, telecommunications, and consumer electronics requiring compact, reliable visual status indication on printed circuit boards. The component is supplied in bulk packaging.
Additional Information
Series: 555RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 6mA |
| Color | Red (x 4) |
| Voltage Rating | 5V |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.6mcd |
| Configuration | 4 Wide |
| Viewing Angle | 35° |
| Lens Type | Clear |
| Wavelength - Peak | 655nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
