5553303
LED CBI 2MM GRN TH PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

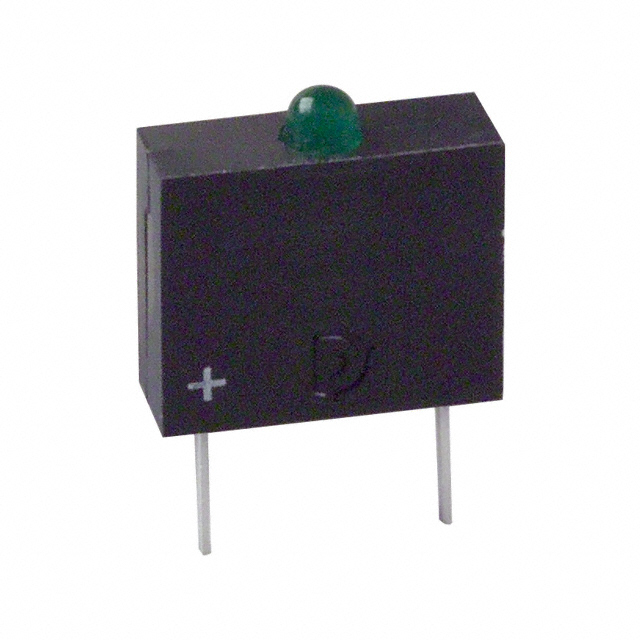

Dialight 555 Series LED Circuit Board Indicator, part number 5553303, is a single, through-hole mounted green LED. This component features a clear, round lens with a domed top, measuring 2.00mm in diameter, and offers a 40° viewing angle. It operates at a 5V rating with a typical current draw of 4.7mA, producing a millicandela rating of 2.5mcd and a peak wavelength of 565nm. This indicator is suitable for applications in industrial automation, telecommunications, and medical equipment.
Additional Information
Series: 555RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 4.7mA |
| Color | Green |
| Voltage Rating | 5V |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.5mcd |
| Configuration | Single |
| Viewing Angle | 40° |
| Lens Type | Clear |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
