5530133300
LED CBI 3MM BI-LVL YELLOW RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

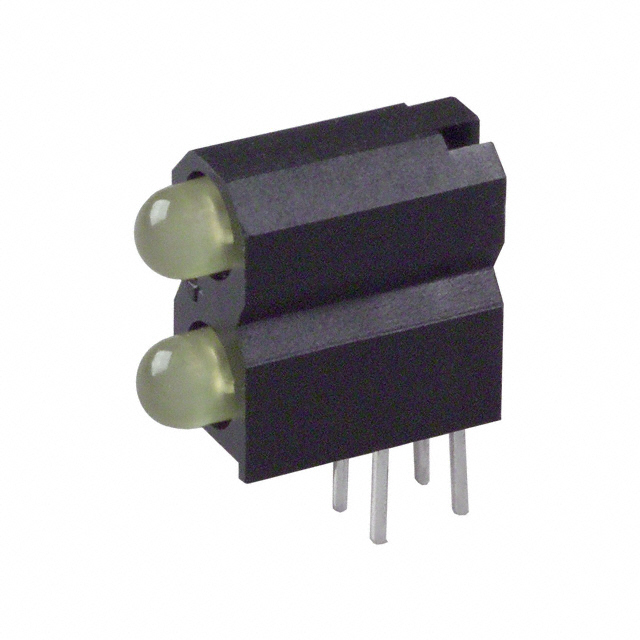

Dialight 553 Series LED Circuit Board Indicator, part number 5530133300, features a dual-level, right-angle mounting configuration. Each of the two distinct indicators is a 3mm (T-1) diffused, tinted, round domed top LED. These yellow LEDs operate with a typical forward voltage of 2.1V and a continuous forward current of 10mA, providing a peak wavelength of 585nm and a millicandela rating of 6.3mcd. The viewing angle is 45°. Applications for this component are found in industrial automation, telecommunications infrastructure, and medical equipment, where reliable visual status indication on printed circuit boards is critical. This component is supplied in bulk packaging.
Additional Information
Series: 553RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Yellow (x 2) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 6.3mcd |
| Configuration | 2 High |
| Viewing Angle | 45° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
