5530132
LED CBI 3MM BI-LVL GRN/YELLOW RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

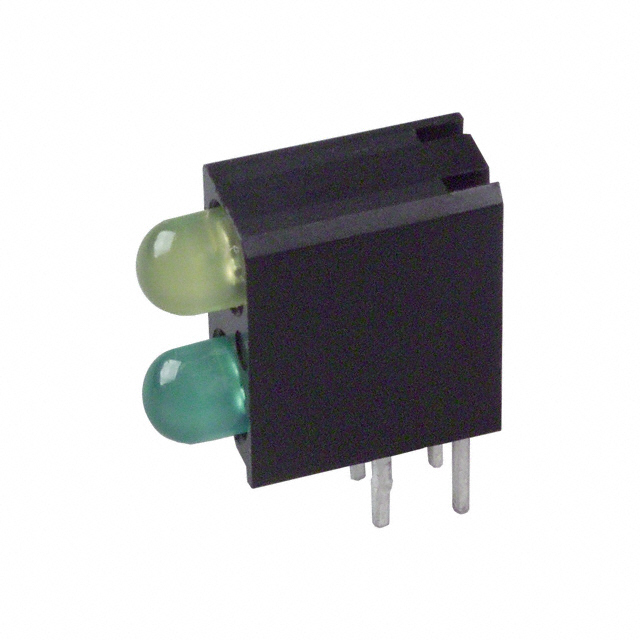

The Dialight 5530132 is a 2-high Bi-Level LED Circuit Board Indicator from the 553 series. This component features two distinct LEDs, one green and one yellow, each with a diffused and tinted lens. The green LED is rated at 16 mcd and has a peak wavelength of 563nm, while the yellow LED is rated at 6.3 mcd with a peak wavelength of 585nm. Both LEDs operate at a forward voltage of 2.1V and a current of 10mA. The indicator utilizes 3mm, T-1 sized round, domed lenses and is designed for right-angle, through-hole mounting. This component is commonly found in industrial automation, control systems, and medical equipment. The 5530132 is supplied in bulk packaging.
Additional Information
Series: 553RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green (x 1), Yellow (x 1) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 16mcd Green, 6.3mcd Yellow |
| Configuration | 2 High |
| Viewing Angle | 45° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 563nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
