5530121
LED CBI 3MM BI-LVL GRN/RED RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

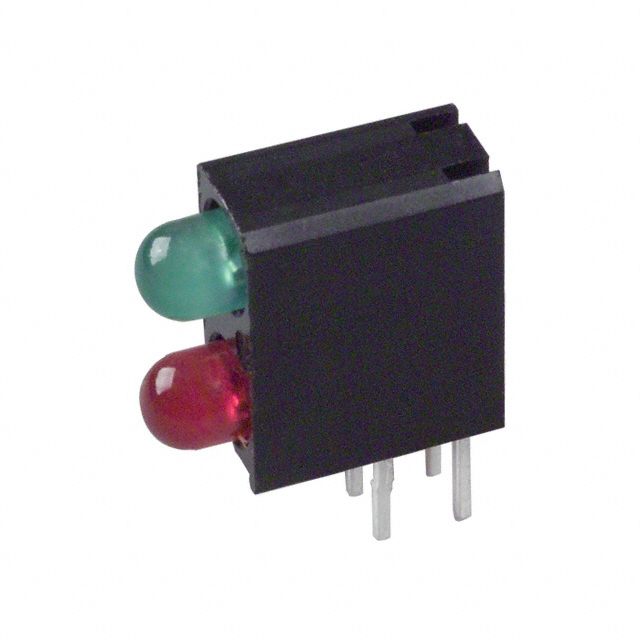

Dialight 553 Series LED Circuit Board Indicator, part number 5530121, features a two-high, right-angle configuration for efficient board space utilization. This component integrates one green and one red diffused, tinted LED, each with a domed top and 3mm T-1 lens. The green LED operates at a typical forward voltage of 2.1V with a peak wavelength of 563nm and a luminous intensity of 16mcd at 10mA. The red LED operates at a typical forward voltage of 2V with a peak wavelength of 650nm and a luminous intensity of 10mcd at 10mA. Designed for through-hole mounting, this indicator is suitable for applications in industrial control, instrumentation, and consumer electronics where clear visual status indication is critical. Supplied in bulk packaging.
Additional Information
Series: 553RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green (x 1), Red (x 1) |
| Voltage Rating | 2.1V Green, 2V Red |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 16mcd Green, 10mcd Red |
| Configuration | 2 High |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 563nm, 650nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
