5530111300
LED CBI 3MM BI-LVL RED RA PCMNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

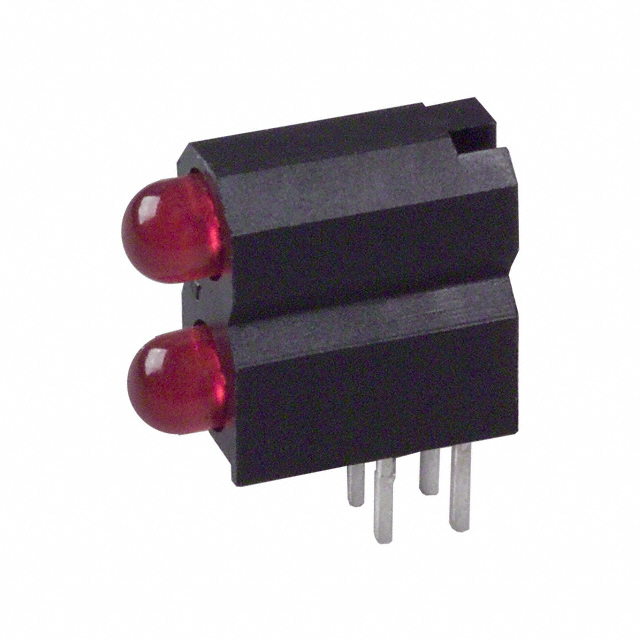

The Dialight 5530111300 is a two-high, right-angle LED Circuit Board Indicator from the 553 series. Each indicator features a 3mm (T-1) diffused, tinted lens with a round, domed top, emitting red light with a peak wavelength of 650nm. Operating at a typical voltage of 2V and a current of 10mA, each LED provides a millicandela rating of 10mcd with a 45° viewing angle. This component is designed for through-hole mounting and is supplied in bulk packaging. It is commonly utilized in industrial control systems, medical equipment, and consumer electronics for status indication.
Additional Information
Series: 553RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red (x 2) |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd |
| Configuration | 2 High |
| Viewing Angle | 45° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 650nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
