5513508801
LED CBI 3MM GREEN/RED 3LEAD RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

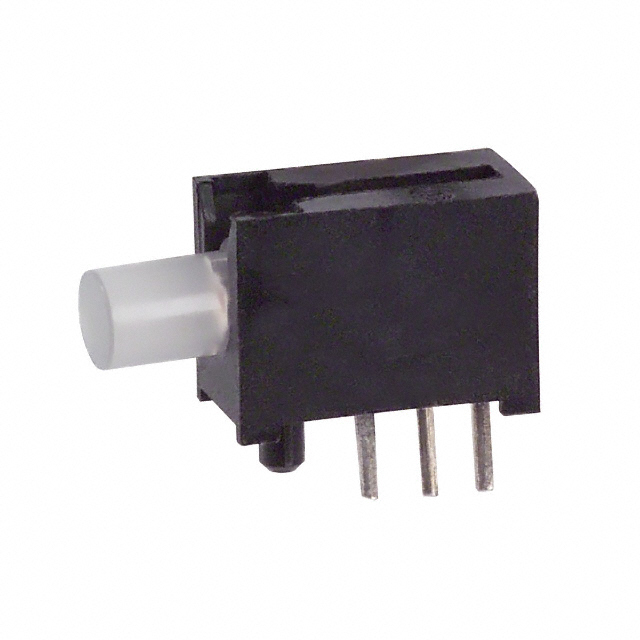

The Dialight 5513508801 is a 3mm (T-1) round, domed top, right-angle LED circuit board indicator featuring a dual-color (green/red) single element configuration. This component operates with a forward voltage of 2.1V for green and 2V for red, at a standard 20mA current rating. The green emitter typically displays a peak wavelength of 560nm with a millicandela rating of 4mcd, while the red emitter shows a peak wavelength of 630nm. Designed for through-hole mounting with a right-angle orientation, this indicator is suitable for applications requiring compact, panel-mount visual feedback. It is commonly utilized in industrial controls, test and measurement equipment, and consumer electronics for status indication. The component is supplied in bulk packaging.
Additional Information
Series: 551RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green, Red |
| Voltage Rating | 2.1V Green, 2V Red |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 4mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 560nm, 630nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
