5513007004
LED CBI 3MM QUAD GRN/RED RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

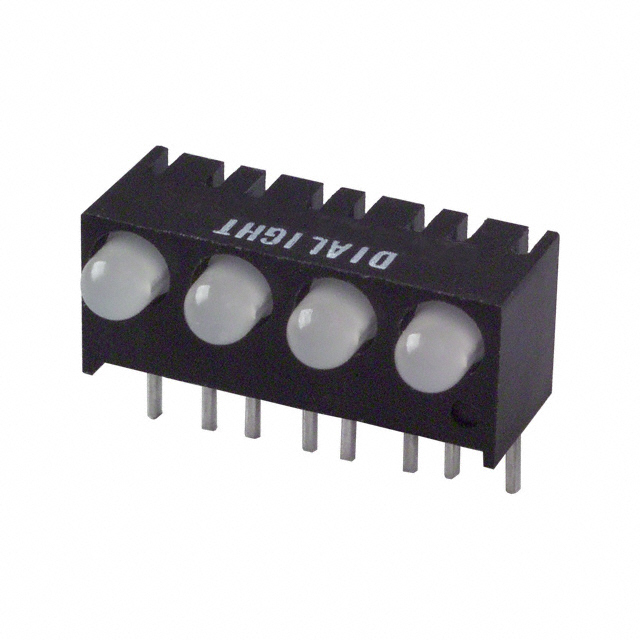

Dialight 551 Series LED Circuit Board Indicator, part number 5513007004. This right-angle, through-hole component features a clear, domed-top, 3mm (T-1) lens. It offers a quad configuration with four wide-angle (50°) LEDs, providing distinct green and red illumination. The green LEDs have a typical forward voltage of 2.1V and a peak wavelength of 565nm, with a luminous intensity of 10mcd. The red LEDs operate at a 2V forward voltage, emitting at a 635nm peak wavelength with a 4.7mcd luminous intensity. Each LED is rated for 10mA forward current. This indicator is supplied in bulk packaging and is commonly utilized in industrial automation, medical equipment, and telecommunications applications.
Additional Information
Series: 551RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green, Red (x 4) |
| Voltage Rating | 2.1V Green, 2V Red |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd Green, 4.7mcd Red |
| Configuration | 4 Wide |
| Viewing Angle | 50° |
| Lens Type | Clear |
| Wavelength - Peak | 565nm, 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
