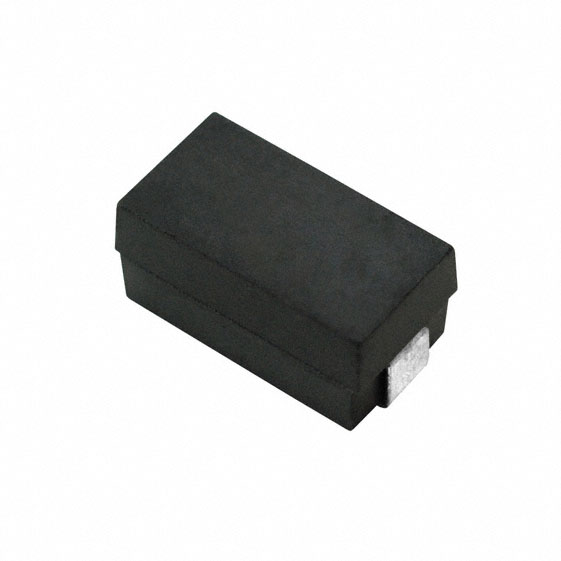

P3519R-101K
FIXED IND 100NH 5.3A 10 MOHM SMDManufacturer: Delevan
Categories: Fixed Inductors
Quality Control: Learn More
100 nH Unshielded Drum Core, Wirewound Inductor 5.3 A 10mOhm Max Nonstandard
Additional Information
Series: P3519RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.358"" L x 0.190"" W (9.09mm x 4.83mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 13.6A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 10 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.185"" (4.70mm) |
| Inductance | 100 nH |
| Current Rating (Amps) | 5.3 A |
Request a Quote
