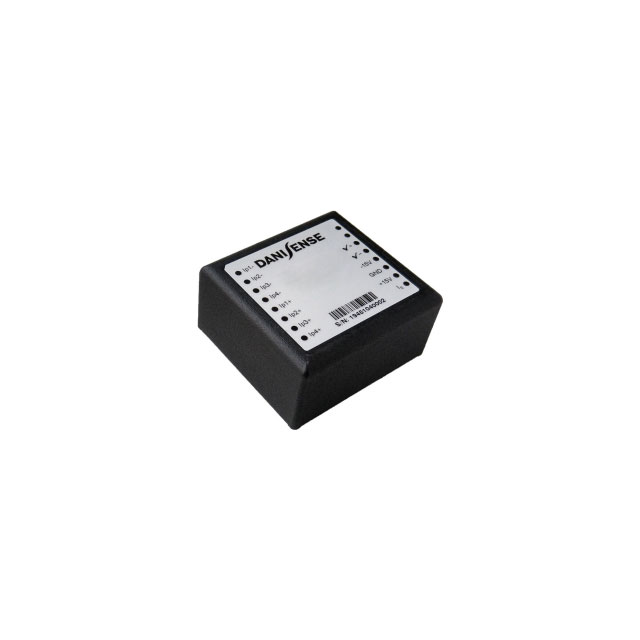

DP50IP
50A PROGRAMMABLE CURRENT TRANSDUManufacturer: Danisense A/S
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 12.5A, 25A, 50A (Selectable) 1 Channel Flux Gate, Closed Loop Bidirectional Module
Additional Information
Series: DPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | DC ~ 1MHz |
| Accuracy | 0.011% |
| Operating Temperature | 0°C ~ 55°C |
| Voltage - Supply | ±14.25V ~ ±15.75V |
| Response Time | 1µs |
| Sensor Type | Flux Gate, Closed Loop |
| Linearity | 0.001% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 42mA |
| Current - Sensing | 12.5A, 25A, 50A (Selectable) |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy
DBPS25P365TXLF
CONN D-SUB PLUG 25POS VERT SLDR
DPB2
ACCESSORY: DPB2 PROGRAMMING BOX;

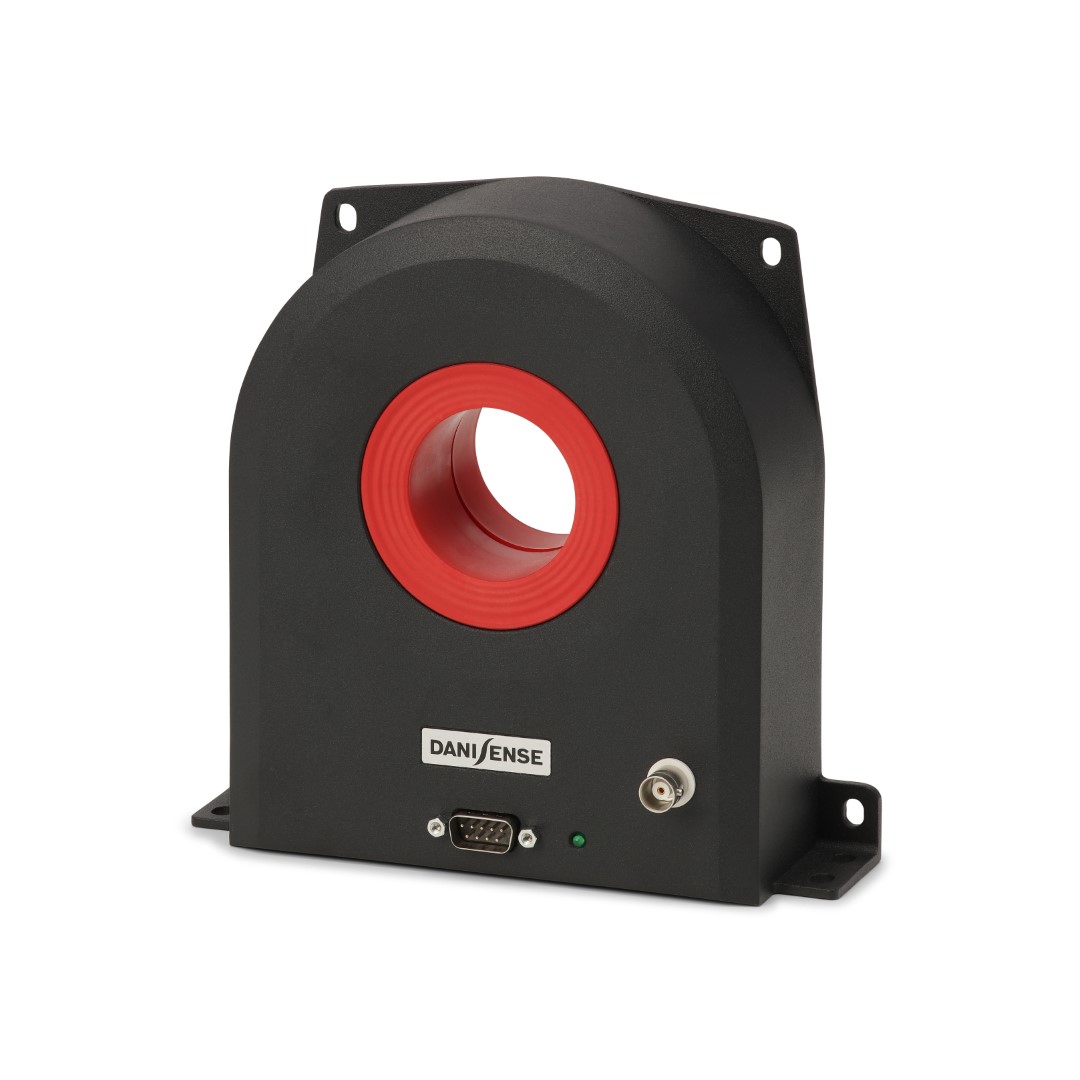

DM1200UB-10V
