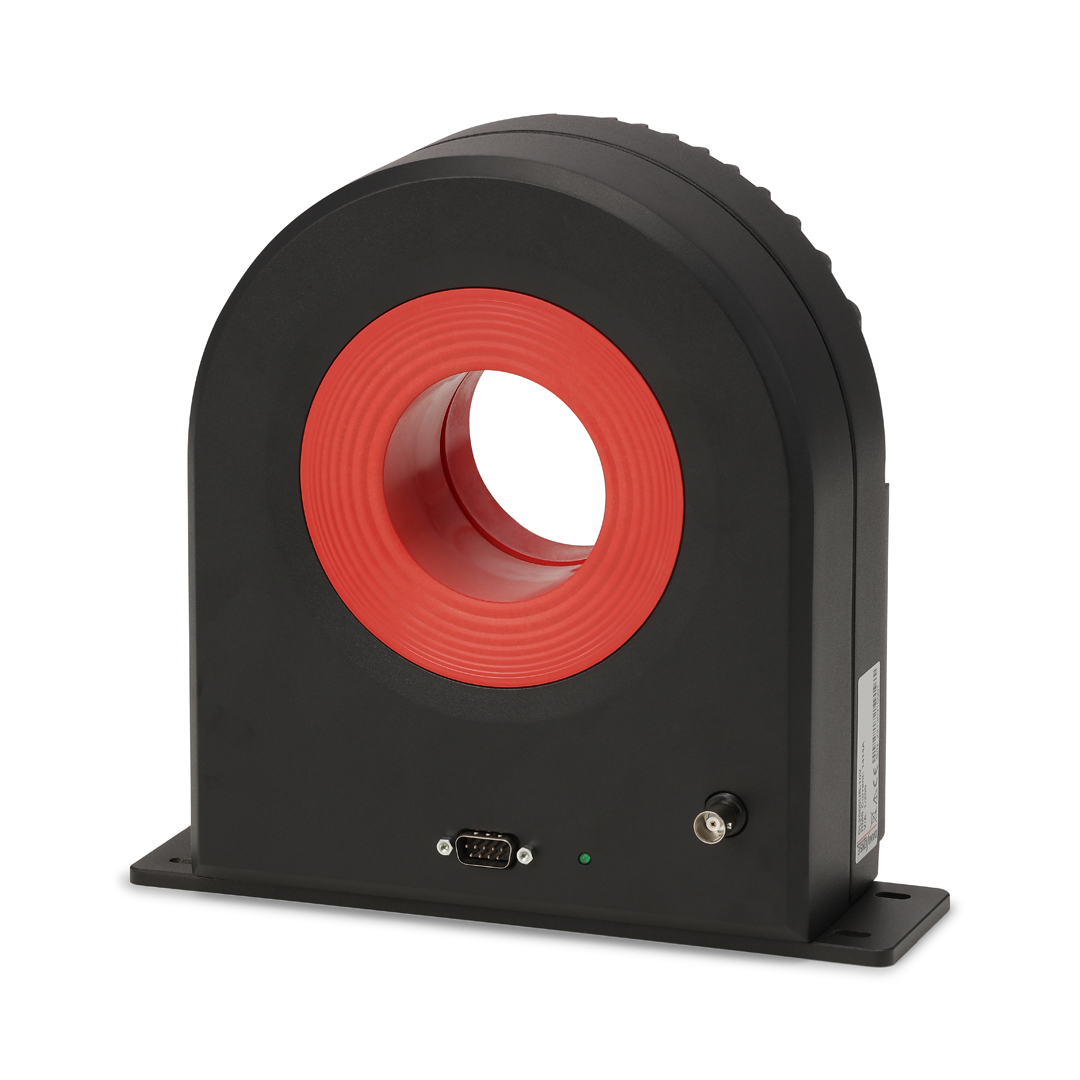

DL2000UB-10V
CURRENT TRANSDUCER 2000AManufacturer: Danisense A/S
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 2000A 1 Channel Flux Gate, Closed Loop Bidirectional Module, Single Pass Through
Additional Information
Series: DLRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 300kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 65°C |
| Voltage - Supply | ±14.25V ~ 15.75V |
| Response Time | 1µs |
| Sensor Type | Flux Gate, Closed Loop |
| Linearity | ±0.002% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 190mA |
| Current - Sensing | 2000A |
| Number of Channels | 1 |
