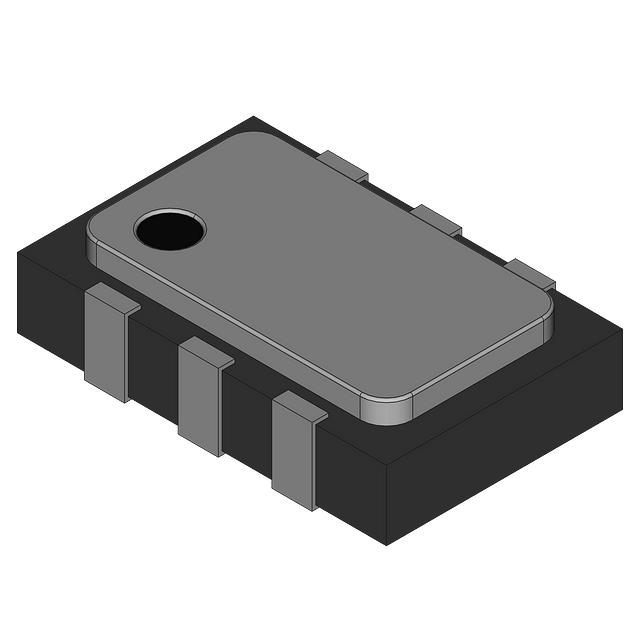

CY2XF33LXC533T
CLOCK GENERATOR, 690MHZ CDSO6Manufacturer: Cypress Semiconductor Corp
Categories: Pin Configurable/Selectable Oscillators
Quality Control: Learn More
Cypress Semiconductor Corp CY2XF33LXC533T is an LVDS Pin Configurable Oscillator, part of the CY2XF33 series. This 6-SMD, No Lead component operates at 3.3V and features a standard XO (crystal oscillator) type. It offers selectable output frequencies including 200MHz, 350MHz, 400MHz, and 533MHz with a frequency stability of ±35ppm. The device is housed in a compact 6-SMD, No Lead package with dimensions of 0.197" L x 0.126" W (5.00mm x 3.20mm) and a height of 0.051" (1.30mm). Its maximum supply current is 120mA, and it operates within a temperature range of 0°C to 70°C. This component is suitable for applications in networking, telecommunications, and consumer electronics.
Additional Information
Series: CY2XF33RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Output | LVDS |
| Function | - |
| Type | XO (Standard) |
| Operating Temperature | 0°C ~ 70°C |
| Frequency Stability | ±35ppm |
| Voltage - Supply | 3.3V |
| Height | 0.051"" (1.30mm) |
| Ratings | - |
| Current - Supply (Max) | 120mA |
| Frequency - Output 1 | 200MHz, 350MHz, 400MHz, 533MHz |
| Frequency - Output 2 | - |
| Frequency - Output 3 | - |
| Frequency - Output 4 | - |
| Base Resonator | Crystal |
