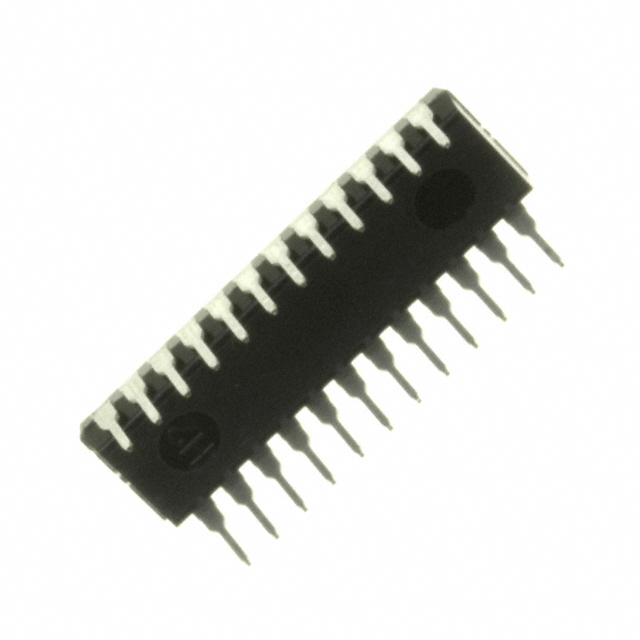

MB95F203KP-G-SH-SNE2
IC MCU 8BIT 8KB FLASH 24DIPManufacturer: Cypress Semiconductor Corp
Categories: Microcontrollers
Quality Control: Learn More
Cypress Semiconductor Corp F²MC MB95200H series microcontroller, part number MB95F203KP-G-SH-SNE2, features an 8-bit F²MC-8FX core operating at 16MHz. This device offers 8KB of FLASH program memory and 496 bytes of RAM. Integrated peripherals include LVD, POR, PWM, and WDT. Connectivity options encompass LINbus, LPC, SIO, and UART/USART. The microcontroller includes six 8/10-bit A/D converters. Designed for through-hole mounting, it comes in a 24-SDIP (0.300", 7.62mm) package. The operating voltage range is 2.4V to 5.5V, with an operating temperature range of -40°C to 85°C. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: F²MC MB95200HRoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 496 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | F²MC-8FX |
| Data Converters | A/D 6x8/10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Connectivity | LINbus, LPC, SIO, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 24-SDIP |
| Number of I/O | 17 |
| Programmable | Not Verified |
