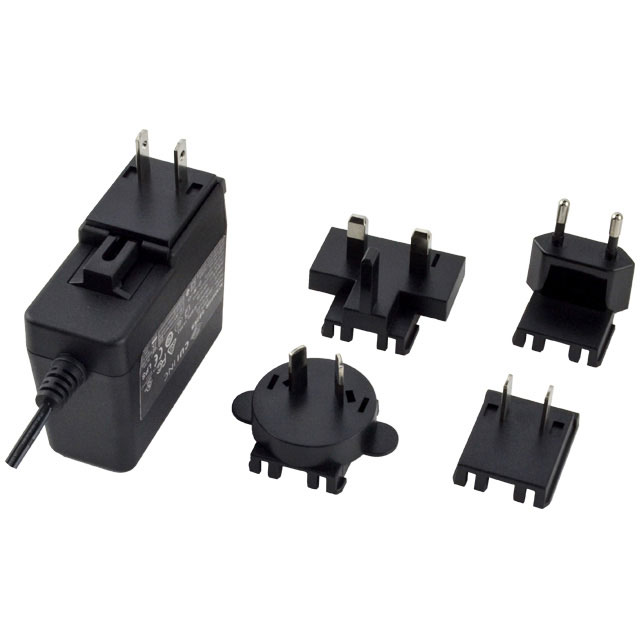

SMI36-5-V-P13
AC/DC DESKTOP ADAPTER 5V 25WManufacturer: CUI Inc.
Categories: AC DC Desktop, Wall Power Adapters
Quality Control: Learn More
5V 25 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
Additional Information
Series: SMI36 (36W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Size / Dimension | 3.09"" L x 1.39"" W x 2.60"" H (78.5mm x 35.3mm x 66.0mm) |
| Voltage - Output | 5V |
| Polarization | Positive Center |
| Output Connector | Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 9.5mm |
| Voltage - Input | 90 ~ 264 VAC |
| Cord Length | 39.4"" (1.00m) |
| Operating Temperature | 0°C ~ 40°C |
| Applications | ITE (Commercial) |
| Input Type | Cord (Sold Separately) |
| Approval Agency | CCC, CE, cULus, FCC, PSE, RCM |
| Form | Desktop (Class II) |
| Efficiency | Level VI, CoC Tier 2 |
| Current - Output (Max) | 5A |
| Input Connector | Multi-Blade (Included) |
| Region Utilized | International |
| No Load Power Consumption | 75mW (Max) |
| Power (Watts) | 25 W |
