SMI24-12-V-P5
AC/DC WALL MOUNT ADAPTER 12V 24WManufacturer: CUI Inc.
Categories: AC DC Desktop, Wall Power Adapters
Quality Control: Learn More

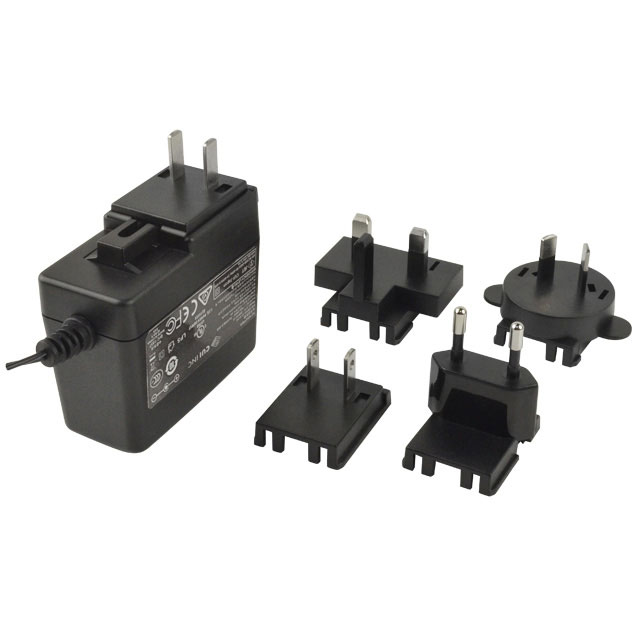

12V 24 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
Additional Information
Series: SMI24 (24W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Size / Dimension | 2.95"" L x 1.38"" W x 2.58"" H (75.0mm x 35.0mm x 65.6mm) |
| Voltage - Output | 12V |
| Polarization | Positive Center |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Voltage - Input | 90 ~ 264 VAC |
| Cord Length | 59"" (1.50m) |
| Operating Temperature | 0°C ~ 40°C |
| Applications | ITE (Commercial) |
| Input Type | Multi-Blade (Included) |
| Approval Agency | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
| Form | Wall Mount (Class II) |
| Efficiency | Level VI, CoC Tier 2 |
| Current - Output (Max) | 2A |
| Input Connector | Multi-Blade |
| Region Utilized | International |
| No Load Power Consumption | 100mW (Max) |
| Power (Watts) | 24 W |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
