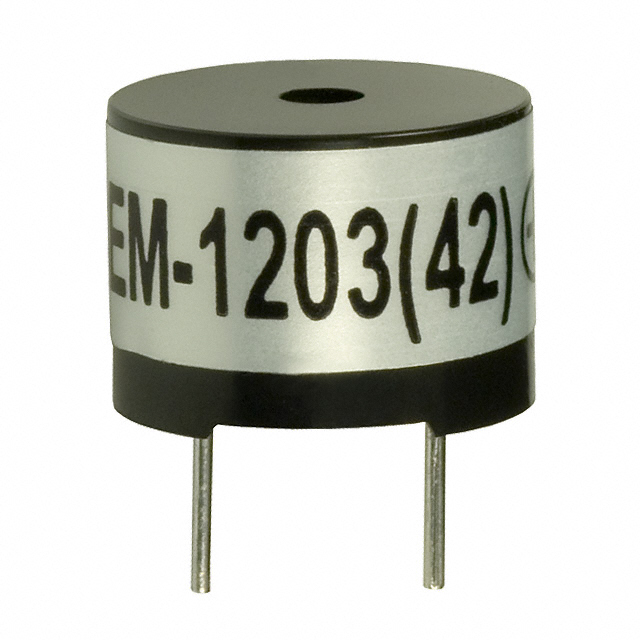

CEM-1203(42)
BUZZER MAGNETIC 3.5V 12.00MM THManufacturer: CUI Devices
Categories: Alarms, Buzzers, and Sirens
Quality Control: Learn More
Buzzers Transducer, Externally Driven Magnetic 3.5 V 35mA 2.048kHz 85dB @ 3.5V, 10cm Through Hole PC Pins
Additional Information
Series: CEMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tray |
| Size / Dimension | 0.472"" Dia (12.00mm) |
| Mounting Type | Through Hole |
| Frequency | 2.048kHz |
| Operating Temperature | -20°C ~ 60°C |
| Sound Pressure Level (SPL) | 85dB @ 3.5V, 10cm |
| Duration | - |
| Current - Supply | 35mA |
| Input Type | Zero-Peak Signal |
| Operating Mode | Single Tone |
| Voltage Range | 3 ~ 5V |
| Technology | Magnetic |
| Termination | PC Pins |
| Approval Agency | - |
| Ratings | - |
| Port Location | Top |
| Driver Circuitry | Transducer, Externally Driven |
| Height - Seated (Max) | 0.354"" (9.00mm) |
| Voltage - Rated | 3.5 V |
Request a Quote
Clients Also Buy

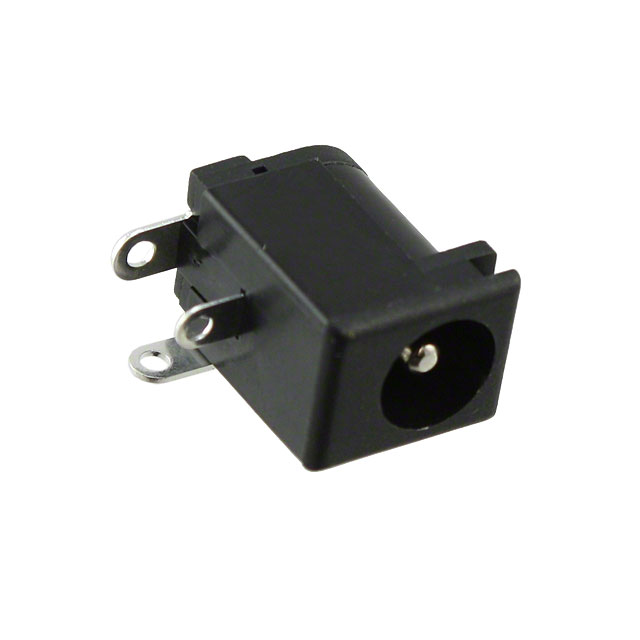

PJ-002AH
CONN PWR JACK 2X5.5MM SOLDER

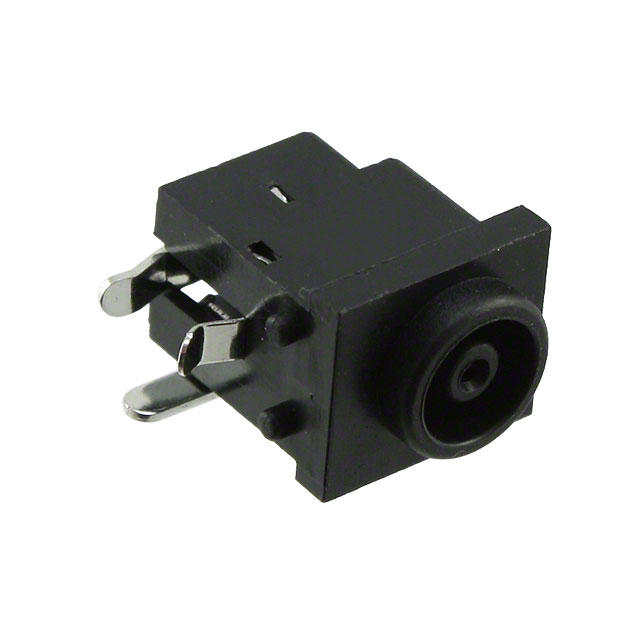

PJ-019
CONN POWER JACK 1X3.3X5.5MM

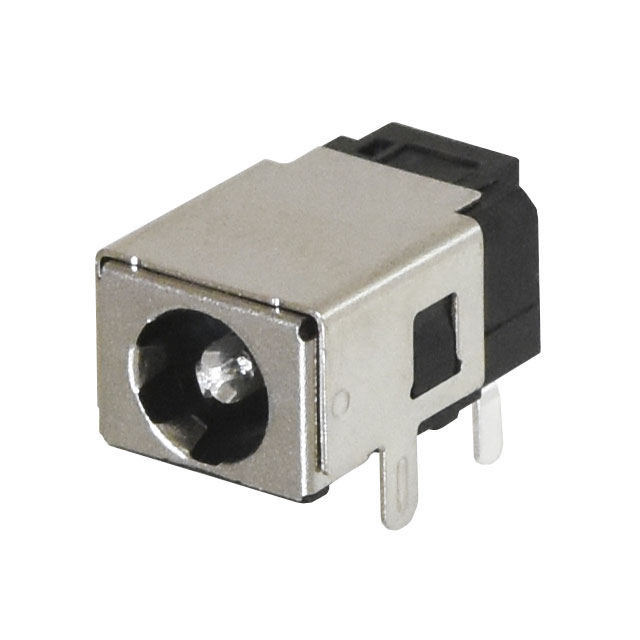

PJ-086H
