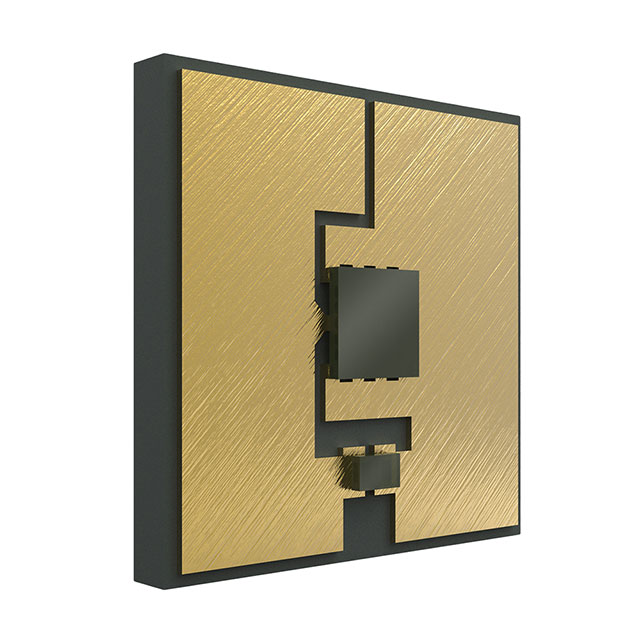

KL265-50U-SM-WD
UVC LED 60MWManufacturer: Crystal IS
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Crystal IS WD Series UVC LED emitter, part number KL265-50U-SM-WD. This surface mount device delivers 60mW of ultraviolet (UV) output within the 260nm to 270nm wavelength range. Featuring a 130° viewing angle, it operates with a typical forward voltage of 7V and a maximum forward current of 700mA. The component is housed in a 1414 (3535 Metric) package and is supplied on tape and reel. The KL265-50U-SM-WD is suitable for applications in water purification, air sterilization, and curing processes. It operates within an ambient temperature range of -10°C to 80°C.
Additional Information
Series: WDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Wavelength | 260nm ~ 270nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 80°C (TC) |
| Voltage - Forward (Vf) (Typ) | 7V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | - |
