L138-DG-225-RI-CR
MOD MITYDSP-L138F W/OMAP-L138Manufacturer: Critical Link LLC
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

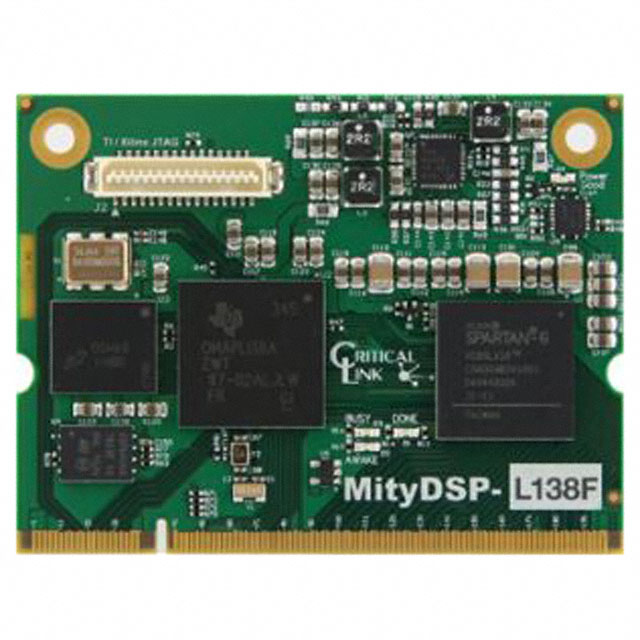

Critical Link LLC MityDSP-L138F module, part number L138-DG-225-RI-CR, integrates an ARM926EJ-S OMAP-L138 core processor alongside a TMS320C674x DSP and a Xilinx Spartan-6 XC6SLX16 FPGA. This embedded module operates at 375MHz and features 8KB internal RAM, 128MB external RAM, 256MB NAND flash, and 8MB NOR flash. Designed for demanding applications, it is suitable for use in industrial automation, medical devices, and telecommunications. The module utilizes a SO-DIMM-200 connector and measures 67.60mm x 50.80mm. It is specified for an industrial operating temperature range of -40°C to 85°C.
Additional Information
Series: MityDSP-L138FRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | SO-DIMM-200 |
| Size / Dimension | 2.660"" L x 2.000"" W (67.60mm x 50.80mm) |
| Speed | 375MHz |
| RAM Size | 8KB (Internal), 128MB (External) |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MPU, DSP, FPGA Core |
| Core Processor | ARM926EJ-S, OMAP-L138 |
| Co-Processor | TMS320C674x (DSP), Spartan-6, XC6SLX16 (FPGA) |
| Flash Size | 256MB (NAND), 8MB (NOR) |
Request a Quote
Clients Also Buy

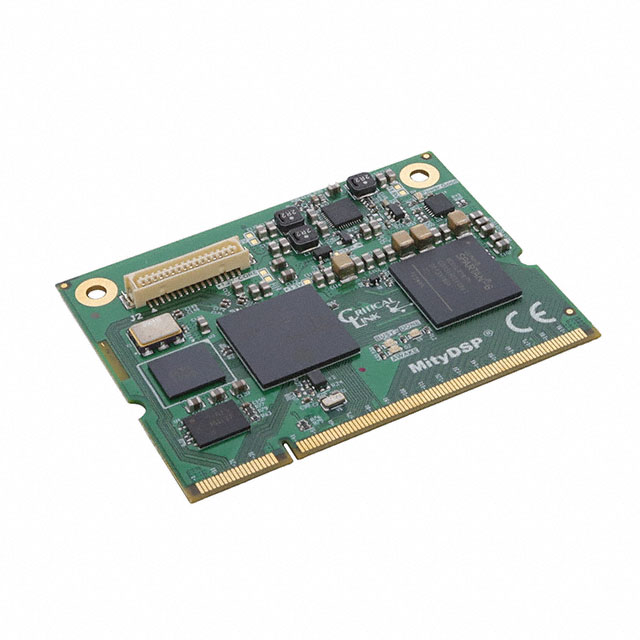

L138-DG-325-RI
MITYDSP-L138F SOM W/ OMAP-L138

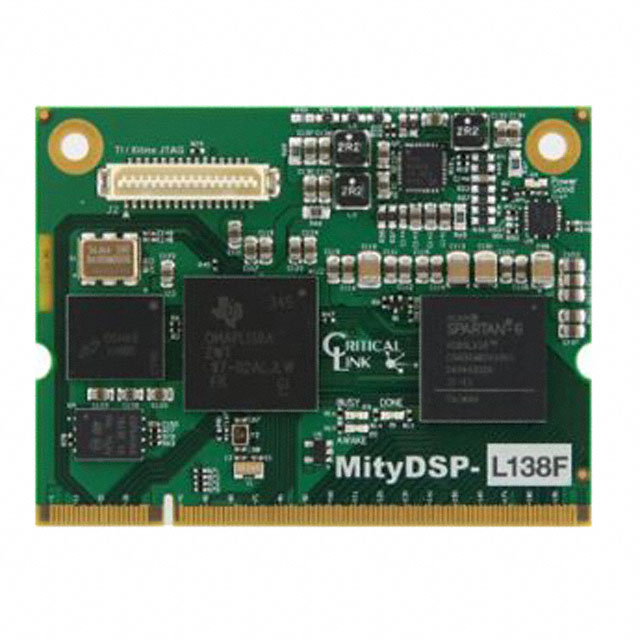

L138-DI-325-RI
MITYDSP-L138F SOM W/ OMAP-L138

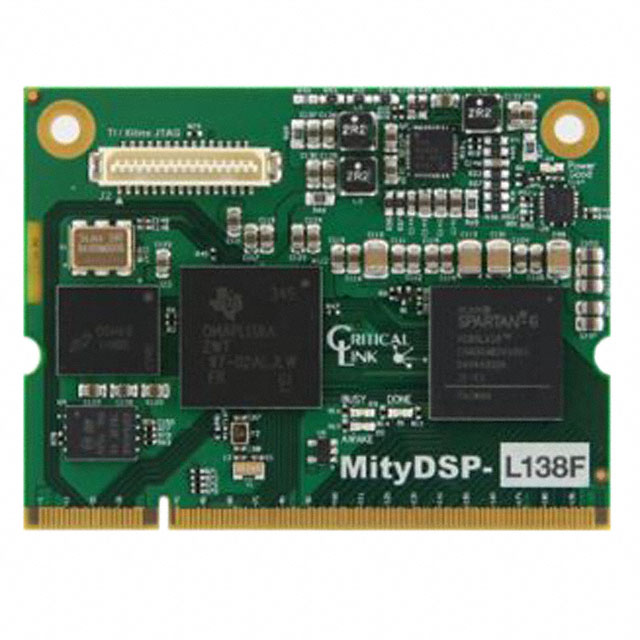

L138-FI-336-RL
