6455-JE-3X5-RC
IC MOD TMS320C6455 1.2GHZ 2MBManufacturer: Critical Link LLC
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

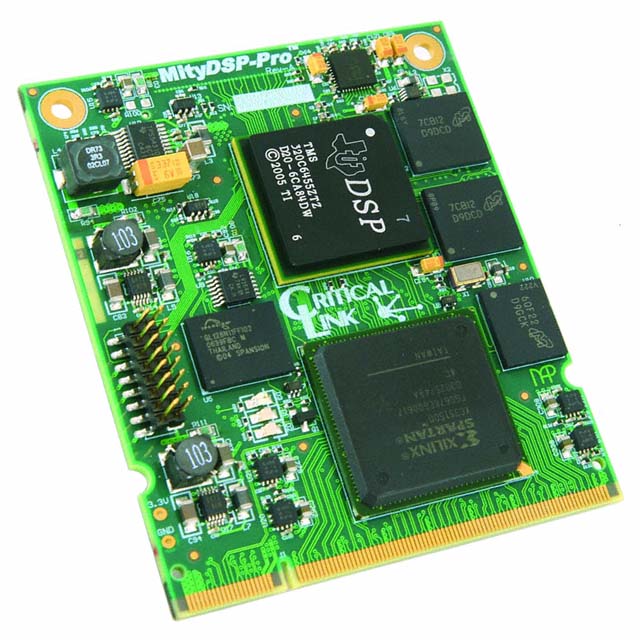

Critical Link LLC's MityDSP-PRO module, part number 6455-JE-3X5-RC, features the TMS320C6455 processor operating at 1.2GHz. This embedded module integrates a 2MB internal SRAM, 128MB of external RAM, and 64MB of FPGA memory. It also includes 16MB of flash memory. The module is equipped with a Spartan-3, XC3S4000 co-processor. Designed for demanding applications, this module is suitable for use in telecommunications, industrial automation, and medical imaging industries. Its SO-DIMM-200 connector facilitates integration into various system designs. The operating temperature range is 0°C to 70°C.
Additional Information
Series: MityDSP-PRORoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | SO-DIMM-200 |
| Size / Dimension | 2.660"" L x 3.250"" W (67.60mm x 82.60mm) |
| Speed | 1.2GHz |
| RAM Size | 2MB (Internal), 128MB (External), 64MB (FPGA) |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | DSP, FPGA Core |
| Core Processor | TMS320C6455 |
| Co-Processor | Spartan-3, XC3S4000 |
| Flash Size | 16MB |
Request a Quote
