XTEHVW-Q2-0000-00000LEF4
LED XLAMP NEUTRAL WHT 4750K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XT-E HVW series, part number XTEHVW-Q2-0000-00000LEF4, is a neutral white LED with a correlated color temperature of 4750K. This surface mount component is housed in a 1414 (3535 Metric) package, measuring 0.136 inches by 0.136 inches. It operates at a typical forward voltage of 48V and a test current of 22mA, with a maximum current rating of 66mA. At 85°C and the test current, it delivers 118 lumens with a luminous efficacy of 112 lm/W and a typical CRI of 75. The component features a wide 115° viewing angle and is supplied in tape and reel packaging. This LED is suitable for applications in general lighting and architectural lighting.
Additional Information
Series: XLamp® XT-E HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 48V |
| Current - Test | 22mA |
| Viewing Angle | 115° |
| Current - Max | 66mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 112 lm/W |
| Height - Seated (Max) | 0.098"" (2.49mm) |
| CCT (K) | 4750K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 118lm (114lm ~ 122lm) |
Request a Quote
Clients Also Buy

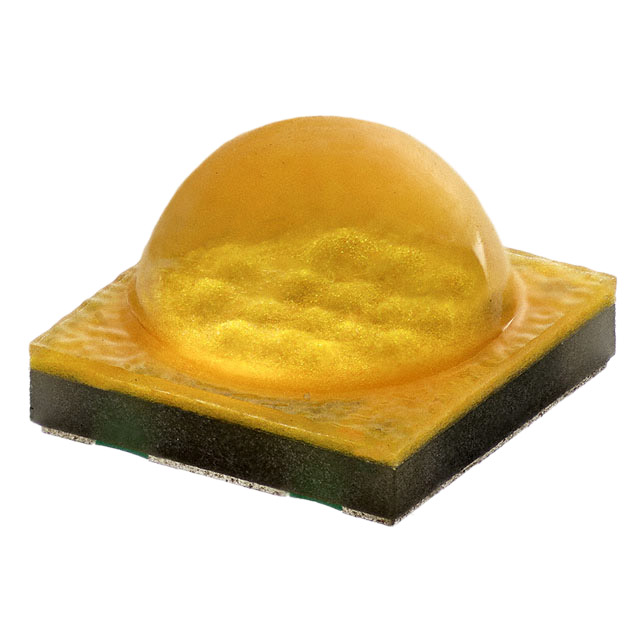

XTEHVW-D0-0000-00000HBE8
