XTEHVW-Q2-0000-00000LBE3
LED XLAMP COOL WHITE 5000K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

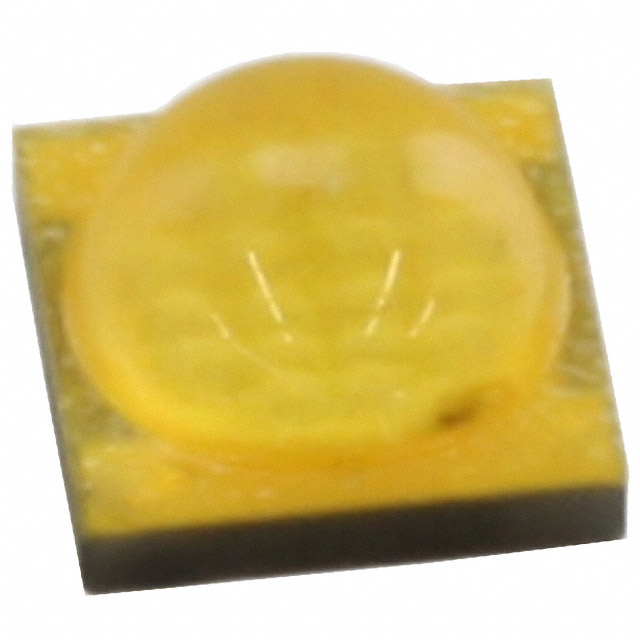

The Cree LED XTEHVW-Q2-0000-00000LBE3 is a high-voltage XLamp® XT-E HVW series LED, delivering cool white light at 5000K with a typical CRI of 75. This surface-mount component, housed in a 1414 (3535 Metric) package, operates at 48V with a test current of 22mA, producing 97 lumens and 92 lm/W. The maximum forward current is 66mA. Its dimensions are 0.136" x 0.136" (3.45mm x 3.45mm) with a maximum seated height of 0.098" (2.49mm), and a wide 115° viewing angle. Packaged on tape and reel, this LED is suitable for demanding lighting applications, including industrial, commercial, and architectural lighting solutions.
Additional Information
Series: XLamp® XT-E HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 48V |
| Current - Test | 22mA |
| Viewing Angle | 115° |
| Current - Max | 66mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 92 lm/W |
| Height - Seated (Max) | 0.098"" (2.49mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 97lm (94lm ~ 100lm) |
