XTEHVW-Q2-0000-00000L9E7
LED XLAMP WARM WHITE 3000K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

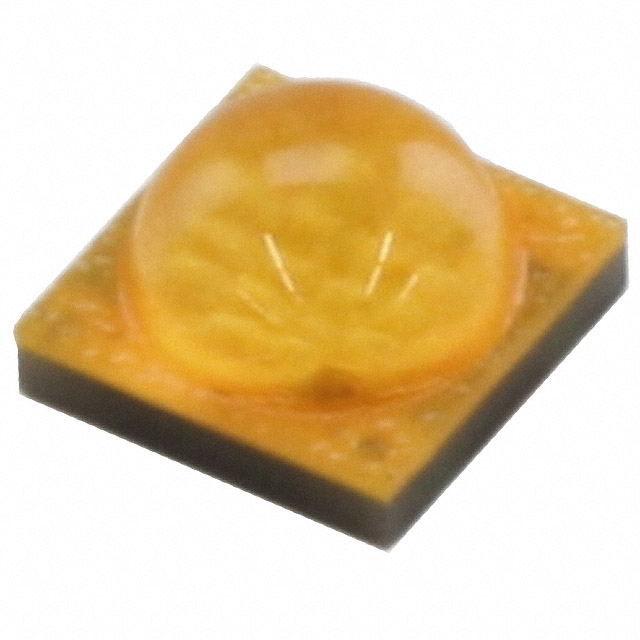

Cree LED XLamp® XT-E HVW series, part number XTEHVW-Q2-0000-00000L9E7. This warm white LED offers a typical color temperature of 3000K with a Color Rendering Index (CRI) of 82. Designed for surface mount applications, it is housed in a 1414 (3535 Metric) package with dimensions of 0.136" x 0.136" (3.45mm x 3.45mm) and a maximum seated height of 0.098" (2.49mm). The viewing angle is 115°. At a test current of 22mA and 48V forward voltage, it produces 84 lumens with a luminous efficacy of 80 lm/W. The maximum forward current is 66mA. This component is supplied in tape and reel packaging and is utilized in general lighting applications.
Additional Information
Series: XLamp® XT-E HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 48V |
| Current - Test | 22mA |
| Viewing Angle | 115° |
| Current - Max | 66mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 80 lm/W |
| Height - Seated (Max) | 0.098"" (2.49mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 82 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 84lm (81lm ~ 87lm) |
