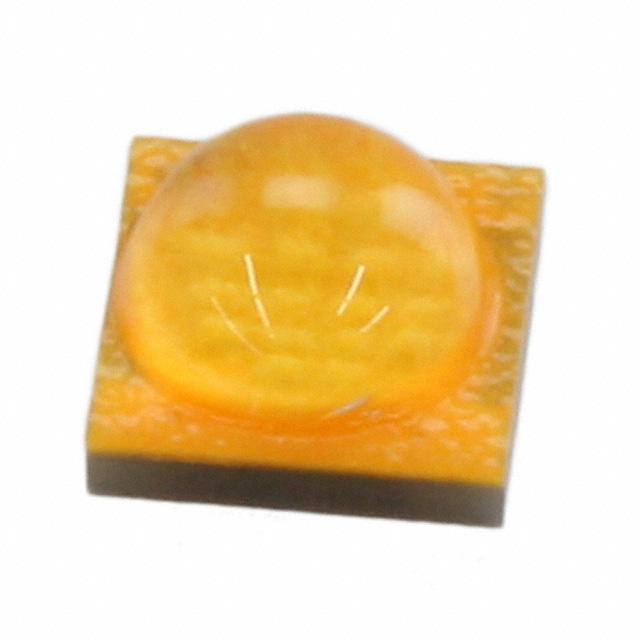

XTEHVW-Q2-0000-00000L8E7
LED XLAMP WARM WHITE 3000K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XT-E HVW warm white LED, part number XTEHVW-Q2-0000-00000L8E7, offers a 3000K color temperature with a typical CRI of 82. This surface-mount component, housed in a 1414 (3535 Metric) package, features a 115° viewing angle. Operating at a typical forward voltage of 48V and a test current of 22mA, it delivers 77 lumens with a luminous efficacy of 73 lm/W at test conditions. The maximum continuous current is rated at 66mA. Its dimensions are 3.45mm x 3.45mm with a seated height of 2.49mm. This LED is supplied on a tape and reel. It finds application in general lighting and architectural lighting solutions.
Additional Information
Series: XLamp® XT-E HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 48V |
| Current - Test | 22mA |
| Viewing Angle | 115° |
| Current - Max | 66mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Height - Seated (Max) | 0.098"" (2.49mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 82 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 77lm (74lm ~ 81lm) |
