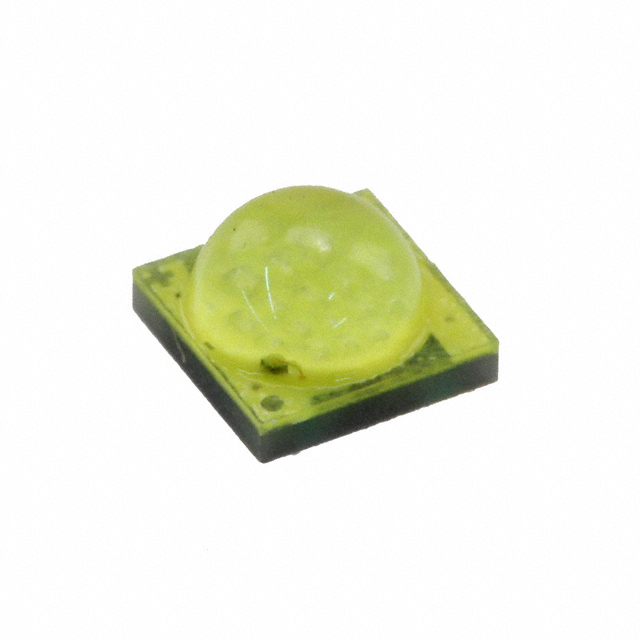

XTEHVW-Q2-0000-00000L7E8
LED XLAMP WARM WHITE 2700K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED's XLamp® XT-E HVW series offers a warm white LED with a correlated color temperature (CCT) of 2700K and a typical color rendering index (CRI) of 82. This component, part number XTEHVW-Q2-0000-00000L7E8, is designed for general illumination applications. It operates at a forward voltage of 48V and a test current of 22mA, delivering 71 lumens with a luminous efficacy of 67 lm/W. The LED features a wide viewing angle of 115° and a maximum forward current of 66mA. Packaged in a 1414 (3535 Metric) surface-mount package measuring 3.45mm x 3.45mm, with a seated height of 2.49mm, it is supplied on a tape and reel. This component is suitable for use in architectural lighting, commercial lighting, and residential lighting solutions.
Additional Information
Series: XLamp® XT-E HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 48V |
| Current - Test | 22mA |
| Viewing Angle | 115° |
| Current - Max | 66mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 67 lm/W |
| Height - Seated (Max) | 0.098"" (2.49mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 82 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 71lm (67lm ~ 74lm) |
