XRCWHT-L1-R250-00901
LED XLAMP COOL WHITE 10000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XR-C series XRCWHT-L1-R250-00901 is a surface-mount Cool White LED with a color temperature range of 5000K to 10000K. This component operates with a typical forward voltage of 3.5V and a test current of 350mA, delivering 84 lumens. It features a maximum forward current of 500mA and a luminous efficacy of 69 lm/W at the test current. The LED boasts a typical CRI of 75 and a wide 90° viewing angle. Packaged in a 3529 (9073 Metric) SMD case, measuring 9.00mm x 7.00mm, and supplied on tape and reel, this device is suitable for general illumination applications.
Additional Information
Series: XLamp® XR-CRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3529 (9073 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.354"" L x 0.276"" W (9.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 350mA |
| Viewing Angle | 90° |
| Current - Max | 500mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 69 lm/W |
| Height - Seated (Max) | 0.181"" (4.60mm) |
| CCT (K) | 5000K ~ 10000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Flux @ 25°C, Current - Test | 84lm (81lm ~ 87lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

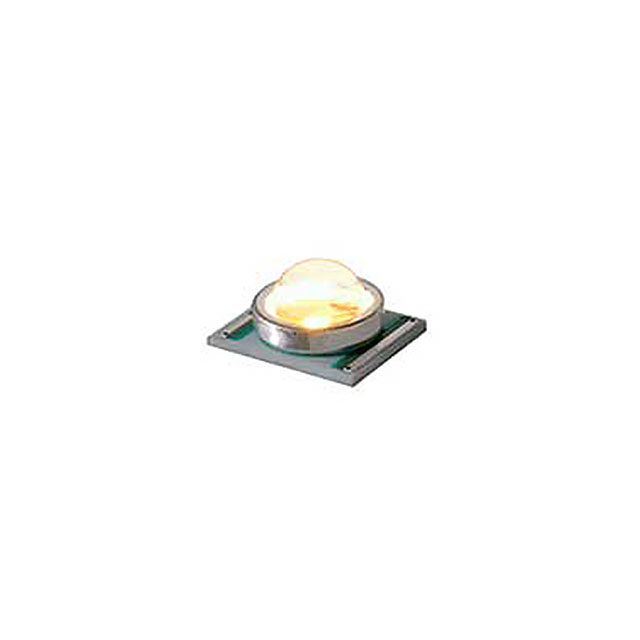

XRCBLU-L1-R250-00H01
