XQEATT-00-0000-000000A80
LED XLAMP XQ-E TORCH COOL WH SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

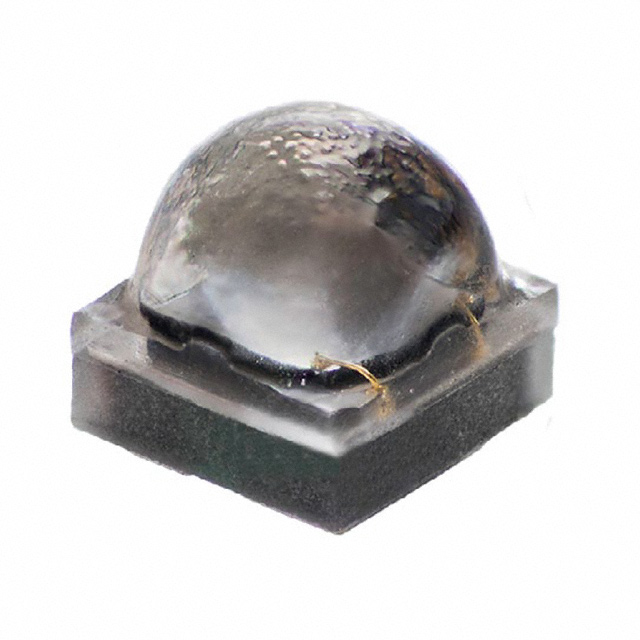

Cree LED Xlamp® XQ-E Torch series, part number XQEATT-00-0000-000000A80, is a cool white surface-mount LED designed for high-performance lighting applications. This component offers a typical forward voltage of 3.5V and operates at a test current of 700mA, delivering 216 lumens of luminous flux. With a typical CRI of 65 and a wide color temperature range of 6000K to 10500K, it provides broad spectrum illumination. The LED features a 100° viewing angle and is housed in a compact 0606 (1616 Metric) SMD package, measuring 1.60mm x 1.60mm with a seated height of 1.69mm. It is supplied on tape and reel for efficient automated assembly. This device is suitable for demanding applications in portable lighting, industrial lighting, and general illumination where robust thermal performance and high efficacy are critical. The maximum forward current capability is 1.05A.
Additional Information
Series: Xlamp® XQ-E TorchRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.063"" L x 0.063"" W (1.60mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 700mA |
| Viewing Angle | 100° |
| Current - Max | 1.05A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 88 lm/W |
| Height - Seated (Max) | 0.067"" (1.69mm) |
| CCT (K) | 6000K ~ 10500K |
| CRI (Color Rendering Index) | 65 (Typ) |
| Flux @ 25°C, Current - Test | 216lm (Typ) |
| Flux @ 85°C, Current - Test | - |
