XPLAWT-00-0000-000HV50E5
LED XLAMP NEUTRAL WHT 4000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

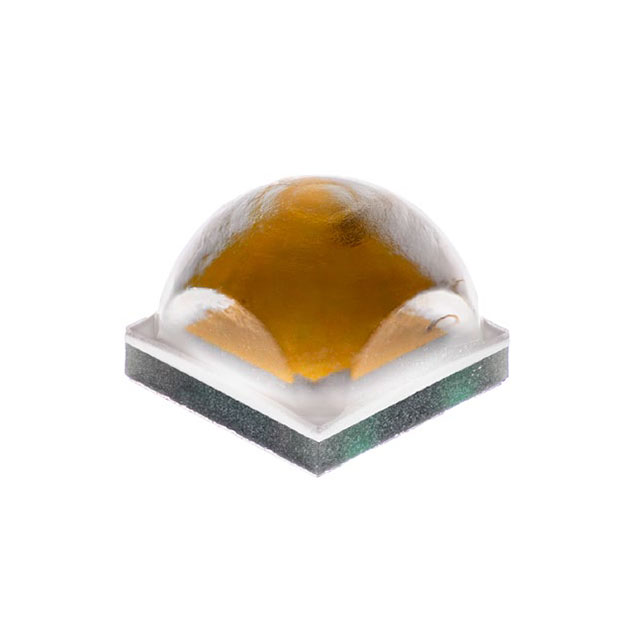

Cree LED XLamp® XP-L series neutral white LED, part number XPLAWT-00-0000-000HV50E5. This surface mount device offers a typical forward voltage of 2.95V and a test current of 1.05A, producing 470 lumens with a luminous efficacy of 152 lm/W. Featuring a 4000K correlated color temperature and a CRI of 80, this LED is suitable for general illumination and automotive lighting applications. The 1414 (3535 Metric) package has dimensions of 3.45mm x 3.45mm, with a maximum seated height of 2.81mm. The viewing angle is 125°.
Additional Information
Series: XLamp® XP-LRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 1.05A |
| Viewing Angle | 125° |
| Current - Max | 3A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 152 lm/W |
| Height - Seated (Max) | 0.111"" (2.81mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 470lm (460lm ~ 480lm) |
Request a Quote
Clients Also Buy
XPLAWT-00-0000-0000V60E1-SB01
LED MOD XLAMP WHT STARBRD 6500K

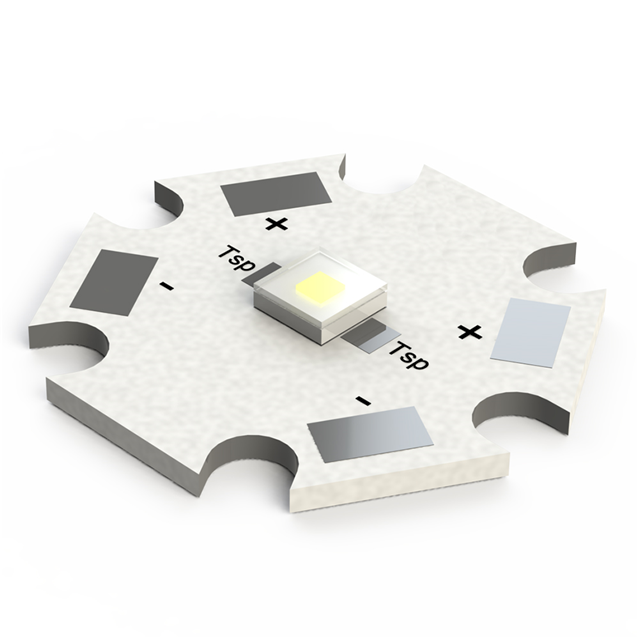

XPLAWT-00-0000-000BV50E5-SB01
