XPEHEW-L1-R250-00CF8
LED XLAMP WARM WHITE 2850K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XP-E HEW Series Warm White LED, part number XPEHEW-L1-R250-00CF8. This surface mount device features a correlated color temperature (CCT) of 2850K and a typical color rendering index (CRI) of 80. Optimized for 350mA test current, it delivers 104 lumens at 99 lumens per watt. The LED is housed in a 1414 (3535 Metric) package with a 120° viewing angle. Maximum forward current is rated at 1A. The component is supplied in tape and reel packaging. Its specifications make it suitable for general illumination and fixture applications. The forward voltage at the test current is typically 3V. Dimensions are 0.136 inches (3.45mm) square with a seated height of 0.087 inches (2.21mm).
Additional Information
Series: XLamp® XP-E HEWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 99 lm/W |
| Height - Seated (Max) | 0.087"" (2.21mm) |
| CCT (K) | 2850K |
| CRI (Color Rendering Index) | 80 (Typ) |
| Flux @ 25°C, Current - Test | 104lm (100lm ~ 107lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

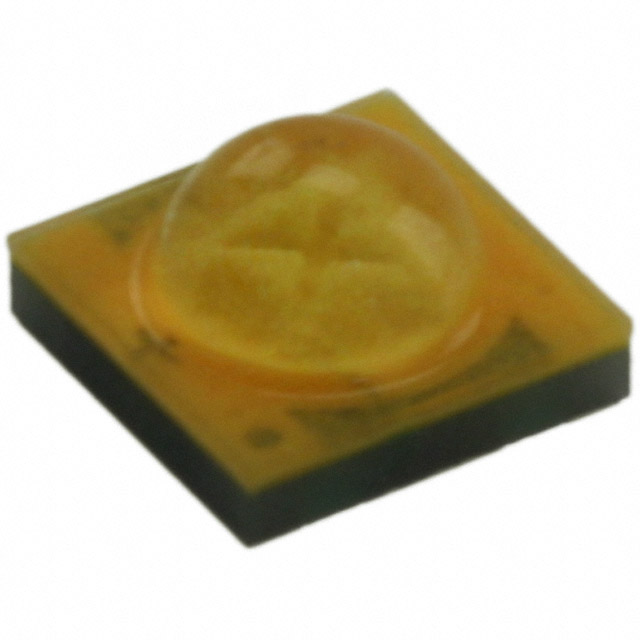

XPEHEW-H1-0000-00AE8
LED XLAMP WARM WHITE 2700K 2SMD

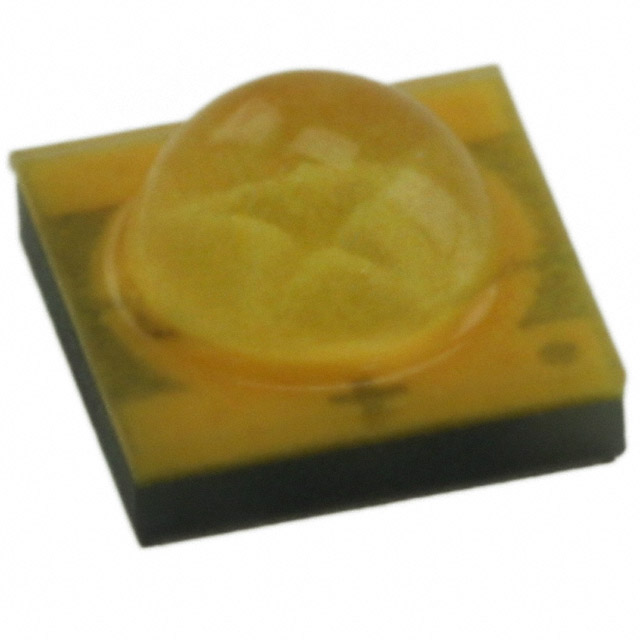

XPEHEW-H1-0000-00BE7
LED XLAMP WARM WHITE 3000K 2SMD

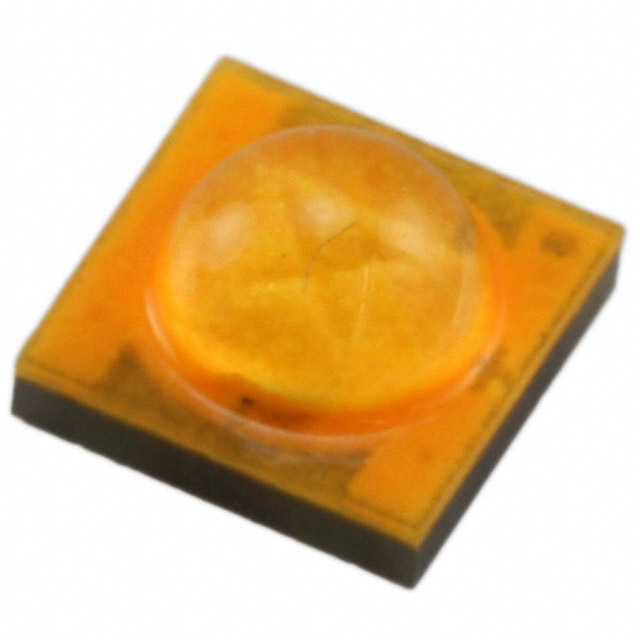

XPEHEW-H1-0000-00BE8
