XPEBWT-H1-0000-00EE7
LED XLAMP WARM WHT 3000K 1414Manufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting XLamp® XP-E2 White, Warm 3000K 2.84V 350mA 110° 1414 (3535 Metric)
Additional Information
Series: XLamp® XP-E2RoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.84V |
| Current - Test | 350mA |
| Viewing Angle | 110° |
| Current - Max | 1.5A |
| Supplier Device Package | 1414 |
| Lumens/Watt @ Current - Test | 119 lm/W |
| Height - Seated (Max) | 0.094"" (2.39mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 118lm (114lm ~ 122lm) |
Request a Quote
Clients Also Buy

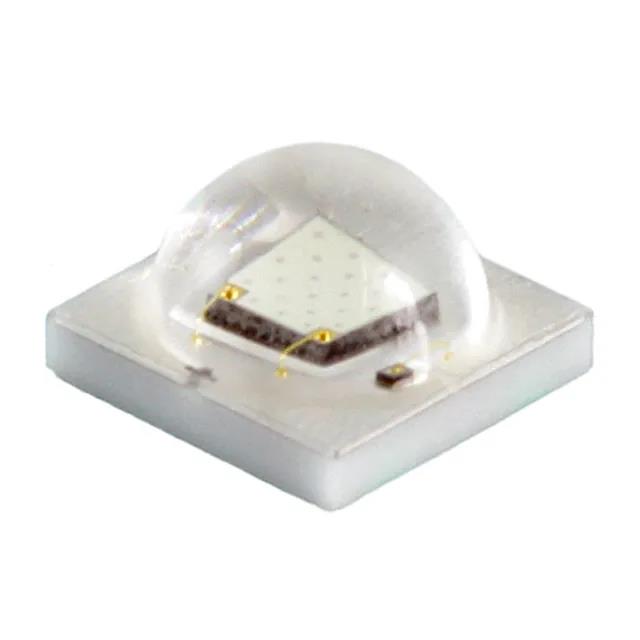

XPEBBL-L1-0000-00Y01TR-ND
LED XLAMP XPE2 BLU 475NM SMD

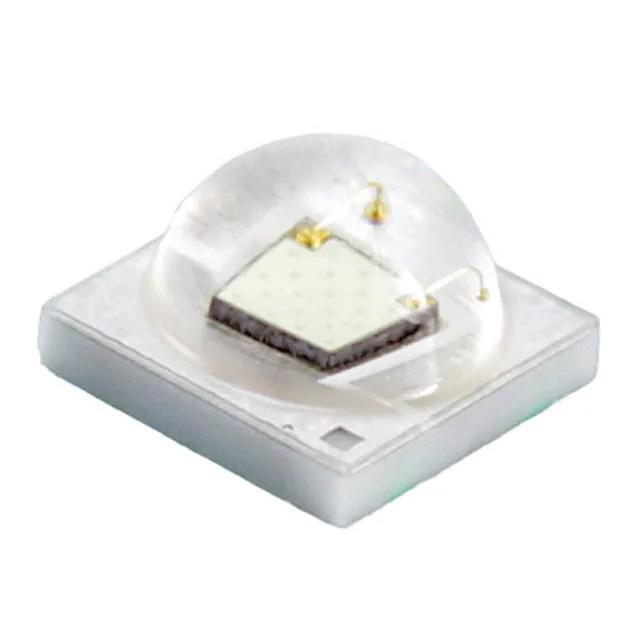

XPEBGR-L1-0000-00A02-ND
