XMLEZW-02-0000-0D00U440H
LED EASYWHT NEU WHT 4000K 2SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

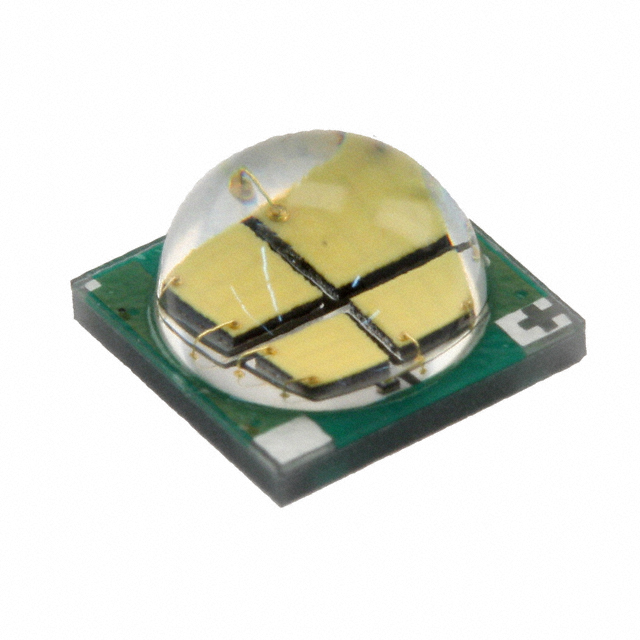

The Cree LED XLamp® XM-L EasyWhite™ emitter, part number XMLEZW-02-0000-0D00U440H, delivers neutral white light at a correlated color temperature (CCT) of 4000K within a 2-step MacAdam ellipse. This surface-mount component features a 115° viewing angle and is supplied in a 2020 (5050 metric) package. Optimized for a test current of 350mA, it provides a typical luminous flux of 350 lumens with a luminous efficacy of 83 lm/W. The forward voltage is 12V. This component is suitable for general lighting and architectural lighting applications. It is provided on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: EasyWhite™, XLamp® XM-LRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 12V |
| Current - Test | 350mA |
| Viewing Angle | 115° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 83 lm/W |
| Height - Seated (Max) | 0.124"" (3.15mm) |
| CCT (K) | 4000K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 350lm (340lm ~ 360lm) |
