XHP70A-00-0000-0D0UJ440G
LED XLAMP NEUTRAL WHT 4000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED Xlamp® XHP70 Series LED, part number XHP70A-00-0000-0D0UJ440G. This neutral white LED features a 4000K correlated color temperature, specified with a 3-step MacAdam ellipse for tight color binning. Offering a high color rendering index of 90, it is designed for applications demanding accurate color representation. The device is optimized for surface mounting within a 2828 (7070 Metric) footprint, measuring 7.00mm x 7.00mm with a seated height of 4.62mm. It supports dual voltage operation at 6V and 12V, with test currents of 2.1A and 1.05A respectively, and maximum currents up to 4.8A and 2.4A. At a test current of 2.1A (6V), it delivers a typical luminous flux of 1160 lumens with a luminous efficacy of 92 lm/W. The wide 120° viewing angle makes it suitable for general illumination and automotive lighting applications. Supplied in a Tape & Reel (TR) package.
Additional Information
Series: Xlamp® XHP70RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.276"" L x 0.276"" W (7.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6V, 12V |
| Current - Test | 2.1A, 1.05A |
| Viewing Angle | 120° |
| Current - Max | 4.8A, 2.4A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 92 lm/W |
| Height - Seated (Max) | 0.182"" (4.62mm) |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 1160lm (1120lm ~ 1200lm) |
Request a Quote
Clients Also Buy

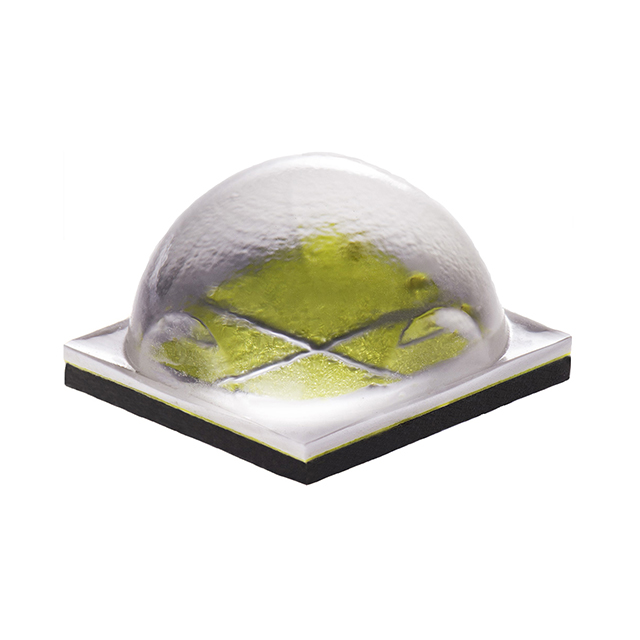

XHP70A-00-0000-0D00N20E1
