XHP50A-00-0000-0D0BJ20E3
LED XLAMP COOL WHITE 5000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

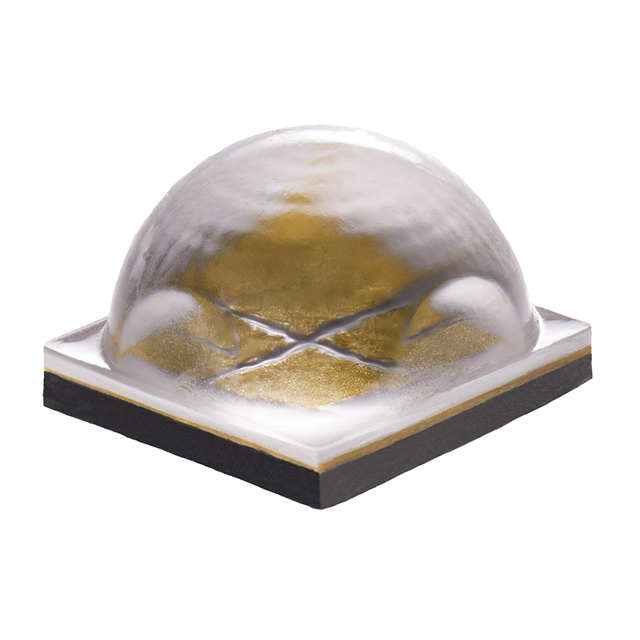

Cree LED Xlamp® XHP50 Series High-Power LED, part number XHP50A-00-0000-0D0BJ20E3. This cool white LED offers a 5000K color temperature with a CRI of 70. Designed for surface mounting in a 2020 (5050 Metric) SMD package, it features a 120° viewing angle and dimensions of 5.00mm x 5.00mm. The device supports dual voltage operation at 6V and 12V, with typical test currents of 1.4A and 700mA respectively. At 1.4A test current, it provides a luminous flux of 1080 lumens (typical) with a luminous efficacy of 129 lm/W. Maximum currents are rated at 3A and 1.5A. This component is commonly utilized in automotive lighting, general lighting, and industrial applications. Supplied on Tape & Reel.
Additional Information
Series: Xlamp® XHP50RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6V, 12V |
| Current - Test | 1.4A, 700mA |
| Viewing Angle | 120° |
| Current - Max | 3A, 1.5A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 129 lm/W |
| Height - Seated (Max) | 0.146"" (3.71mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 1080lm (1040lm ~ 1120lm) |
