XHP35A-H0-0000-0D0PA427G
LED XLAMP WARM WHT 2700KManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

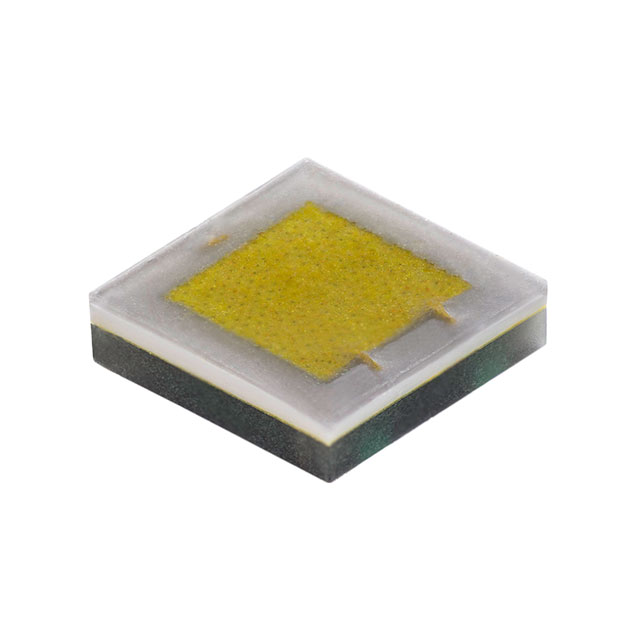

Cree LED Xlamp® XHP35 series warm white LED, part number XHP35A-H0-0000-0D0PA427G. This component features a correlated color temperature of 2700K, specified within a 3-step MacAdam ellipse for tight color consistency. Delivering 368 lumens at the test current of 350mA and 11.3V forward voltage, it offers 93 lm/W efficacy. The viewing angle is 115°. Packaged in a 1414 (3535 Metric) surface mount footprint, its dimensions are 0.136" x 0.136" (3.45mm x 3.45mm) with a seated height of 0.115" (2.93mm). The maximum forward current is 1.05A. This LED is commonly utilized in general lighting, architectural lighting, and specialty lighting applications. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: Xlamp® XHP35RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 11.3V |
| Current - Test | 350mA |
| Viewing Angle | 115° |
| Current - Max | 1.05A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 93 lm/W |
| Height - Seated (Max) | 0.115"" (2.93mm) |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 85 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 368lm (355lm ~ 380lm) |
