XHP35A-00-0000-0D0UC20E3
LED XLAMP COOL WHITE 5000KManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

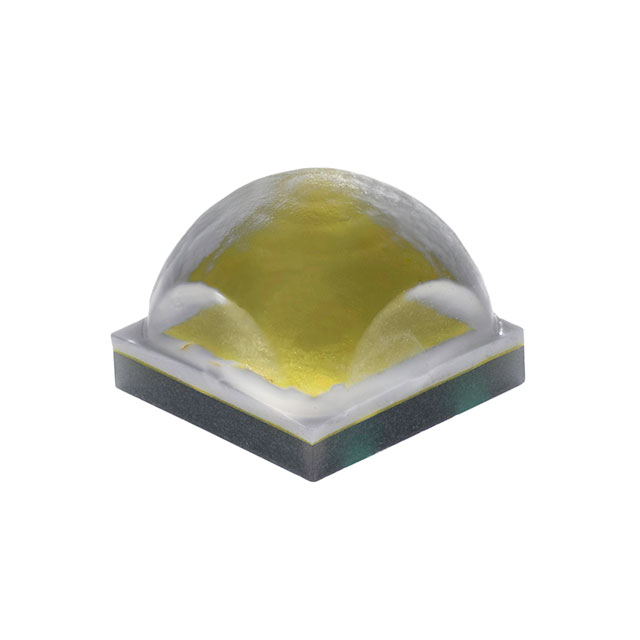

Cree LED Xlamp® XHP35 series LED, part number XHP35A-00-0000-0D0UC20E3. This cool white LED features a correlated color temperature (CCT) of 5000K and a high color rendering index (CRI) of 90. It is designed for surface mount applications with a 1414 (3535 Metric) package, measuring 0.136 inches (3.45mm) square and 0.115 inches (2.93mm) high. Under test conditions of 350mA, it delivers 458 lumens with a luminous efficacy of 116 lm/W. The forward voltage is typically 11.3V, with a maximum forward current of 1.05A. The viewing angle is 125°. This component is commonly utilized in general lighting, architectural lighting, and outdoor lighting applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Xlamp® XHP35RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 11.3V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1.05A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 116 lm/W |
| Height - Seated (Max) | 0.115"" (2.93mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 458lm (440lm ~ 475lm) |
