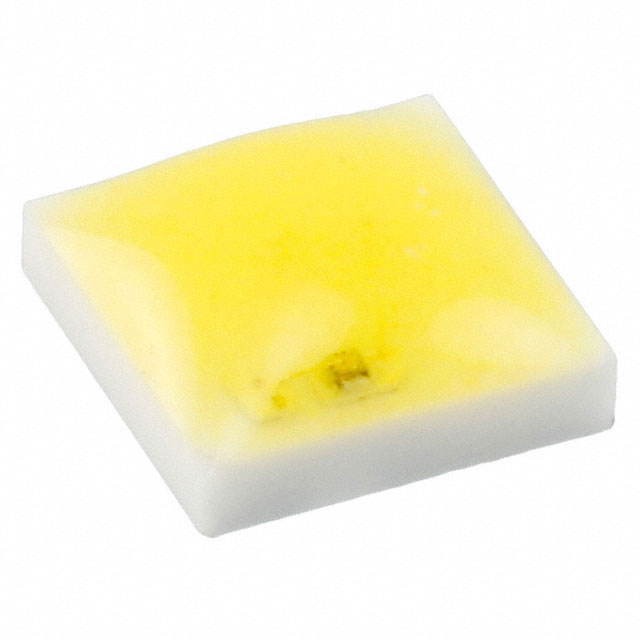

XHBAWT-00-0000-00000HWE3
LED XLAMP COOL WHITE 5000K 3030Manufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XH-B Series XHBAWT-00-0000-00000HWE3 is a cool white LED designed for high-performance lighting applications. This component features a typical forward voltage of 3.1V and operates at a test current of 65mA, delivering 25 lumens with a luminous efficacy of 124 lm/W. The LED boasts a color temperature of 5000K and a Color Rendering Index (CRI) of 80, ensuring accurate color representation. Its wide 130° viewing angle provides broad illumination. The compact 1212 (3030 Metric) package, measuring 3.00mm x 3.00mm, is suitable for surface mounting and is supplied on tape and reel. This component is utilized in various lighting sectors, including general illumination, architectural lighting, and specialty lighting. The maximum forward current is rated at 175mA.
Additional Information
Series: XLamp® XH-BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 65mA |
| Viewing Angle | 130° |
| Current - Max | 175mA |
| Supplier Device Package | 3030 |
| Lumens/Watt @ Current - Test | 124 lm/W |
| Height - Seated (Max) | 0.072"" (1.83mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 25lm (24lm ~ 27lm) |
| Flux @ 85°C, Current - Test | - |
