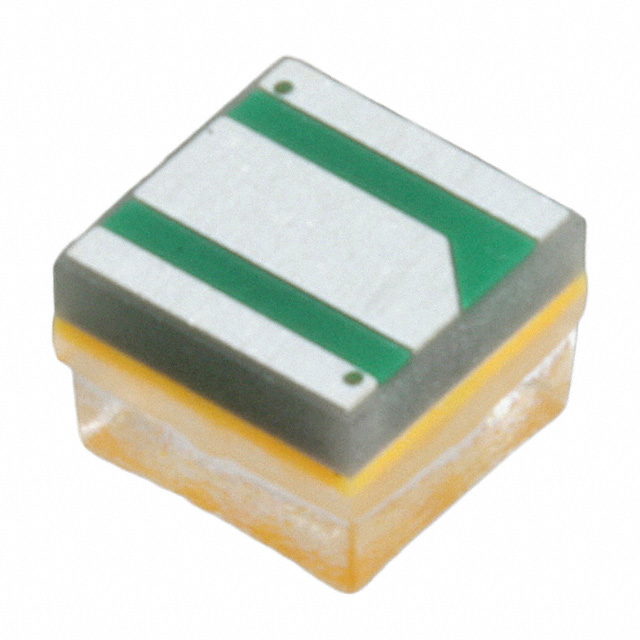

XBGHVW-H0-0000-00000HDE8
LED XLAMP WARM WHT 2700K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XB-G HVW series, part number XBGHVW-H0-0000-00000HDE8, is a warm white LED with a correlated color temperature (CCT) of 2700K and a Color Rendering Index (CRI) of 80. This surface-mount device features a typical forward voltage of 22.5V and a test current of 44mA, delivering 111 lumens at 112 lm/W. The LED has a wide viewing angle of 140° and is housed in a 1010 (2525 Metric) package, measuring 0.096" x 0.096" (2.45mm x 2.45mm) with a maximum seated height of 0.092" (2.33mm). It is supplied on tape and reel (TR) and finds application in general illumination and architectural lighting solutions. The maximum continuous forward current is rated at 200mA.
Additional Information
Series: XLamp® XB-G HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1010 (2525 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.096"" L x 0.096"" W (2.45mm x 2.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 22.5V |
| Current - Test | 44mA |
| Viewing Angle | 140° |
| Current - Max | 200mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 112 lm/W |
| Height - Seated (Max) | 0.092"" (2.33mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 111lm (107lm ~ 114lm) |
