XBEHVW-H0-0000-00000HEE3
LED XLAMP COOL WHITE 5000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® XB-E HVW Series, part number XBEHVW-H0-0000-00000HEE3. This cool white LED features a correlated color temperature (CCT) of 5000K with a minimum Color Rendering Index (CRI) of 80. Designed for surface mount applications, it utilizes a 1010 (2525 Metric) package. The typical forward voltage is 23.5V at a test current of 44mA, achieving a luminous efficacy of 114 lm/W. The maximum forward current is rated at 125mA. This component offers a wide viewing angle of 140 degrees and is supplied in tape and reel packaging. Its compact dimensions of 0.096" x 0.096" (2.45mm x 2.45mm) with a maximum seated height of 0.092" (2.33mm) make it suitable for various lighting solutions, including general illumination and architectural lighting applications.
Additional Information
Series: XLamp® XB-E HVWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1010 (2525 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.096"" L x 0.096"" W (2.45mm x 2.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 23.5V |
| Current - Test | 44mA |
| Viewing Angle | 140° |
| Current - Max | 125mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 114 lm/W |
| Height - Seated (Max) | 0.092"" (2.33mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 118lm (114lm ~ 122lm) |
Request a Quote
Clients Also Buy

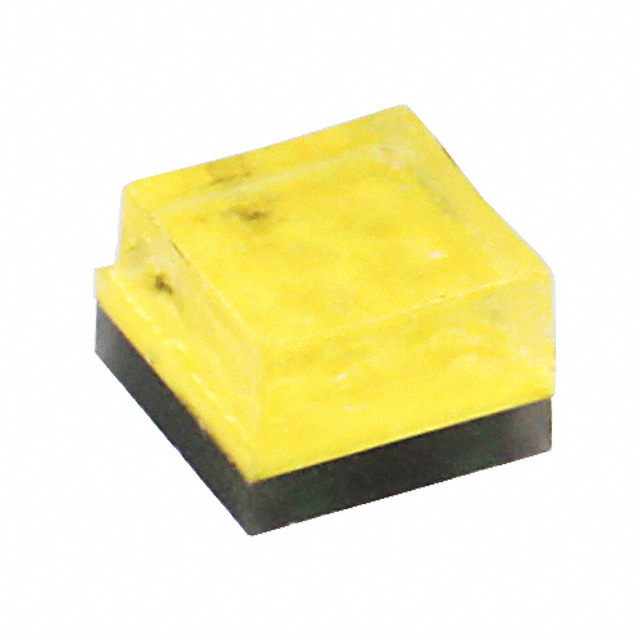

XBEHVW-H0-0000-00000HCE8
