MX6SWT-A1-R250-000CA1
LED XLAMP COOL WHITE 5000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

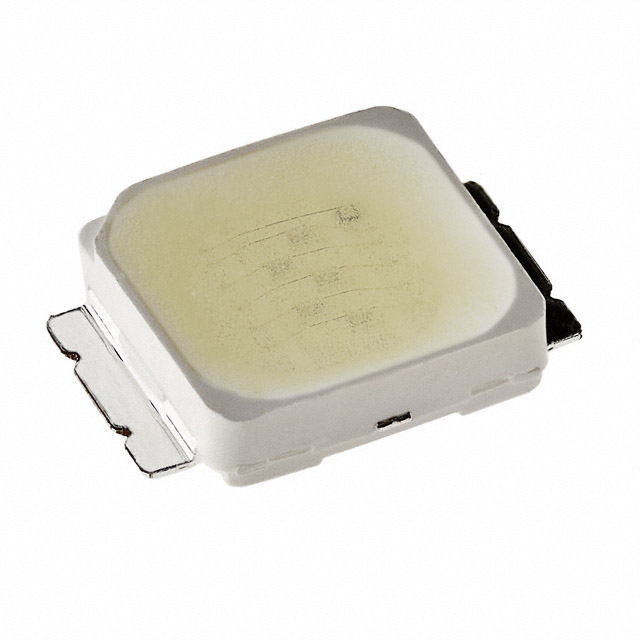

Cree LED XLamp® MX-6S series cool white LED, part number MX6SWT-A1-R250-000CA1. This 2-SMD, Gull Wing surface-mount component offers a typical correlated color temperature (CCT) of 5000K with a color rendering index (CRI) of 75. Designed for efficient operation, it features a forward voltage of 20V and a test current of 60mA, producing 104 lumens with a luminous efficacy of 87 lm/W. The maximum forward current is 175mA, and it has a wide 120° viewing angle. The package dimensions are 5.00mm x 5.00mm, with a seated height of 1.48mm. This component is supplied in Tape & Reel (TR) packaging, commonly utilized in general lighting and outdoor lighting applications.
Additional Information
Series: XLamp® MX-6SRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | White, Cool |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 20V |
| Current - Test | 60mA |
| Viewing Angle | 120° |
| Current - Max | 175mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 87 lm/W |
| Height - Seated (Max) | 0.058"" (1.48mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Flux @ 25°C, Current - Test | 104lm (100lm ~ 107lm) |
| Flux @ 85°C, Current - Test | - |
