MX3SWT-A1-R250-000DA2
LED XLAMP NEUTRAL WHT 4750K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® MX-3S series, part number MX3SWT-A1-R250-000DA2. This neutral white LED features a 4750K color temperature with a typical CRI of 75. The component is designed for surface mounting with a 2-SMD, Gull Wing exposed pad package, measuring 0.197 inches square. It operates at a typical forward voltage of 10.7V and a test current of 115mA, with a maximum current rating of 175mA. At the test current, it provides 111 lumens with a luminous efficacy of 90 lm/W and a wide 120° viewing angle. This component is suitable for general lighting applications. Supplied in Tape & Reel packaging.
Additional Information
Series: XLamp® MX-3SRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Neutral |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 10.7V |
| Current - Test | 115mA |
| Viewing Angle | 120° |
| Current - Max | 175mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 90 lm/W |
| Height - Seated (Max) | 0.058"" (1.48mm) |
| CCT (K) | 4750K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Flux @ 25°C, Current - Test | 111lm (107lm ~ 114lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

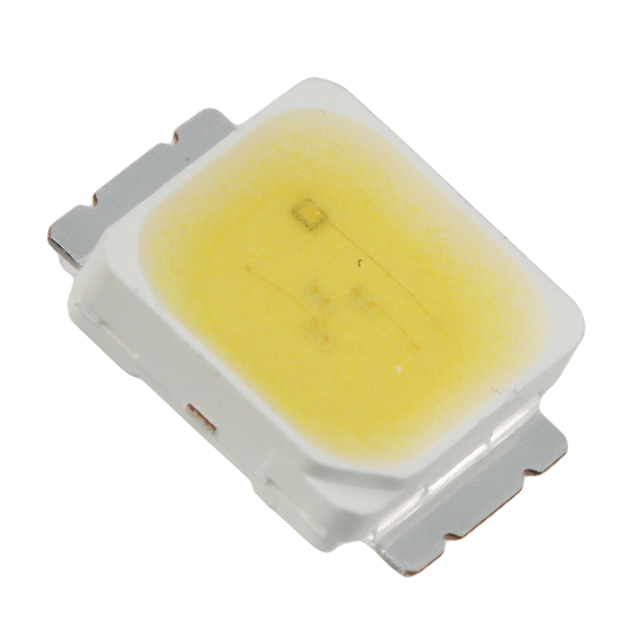

MX3SWT-A1-0000-000AE8
