MPLEZW-A1-R100-0000C040F
LED EASYWHT NEU WHT 4000K 6SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
The Cree LED XLamp® MPL-EZW series LED, part number MPLEZW-A1-R100-0000C040F, offers neutral white illumination with a correlated color temperature (CCT) of 4000K, specified within a 4-Step MacAdam Ellipse for tight color uniformity. This EasyWhite® component is designed for surface mounting, utilizing a 6-SMD, No Lead package measuring 13.15mm x 12.15mm. It operates with a typical forward voltage of 25V and is rated for a maximum drive current of 3 x 250mA, with a test current of 3 x 150mA yielding 850 lumens. The viewing angle is 125°. This component finds application in general lighting and architectural lighting solutions. It is supplied on tape and reel.
Additional Information
Series: EasyWhite®, XLamp® MPL-EZWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Color | White, Neutral |
| Size / Dimension | 0.518"" L x 0.478"" W (13.15mm x 12.15mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 25V |
| Current - Test | 3 x 150mA |
| Viewing Angle | 125° |
| Current - Max | 3 x 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 76 lm/W |
| Height - Seated (Max) | 0.250"" (6.35mm) |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 850lm (800lm ~ 900lm) |
| Flux @ 85°C, Current - Test | 638lm |
Request a Quote
Clients Also Buy

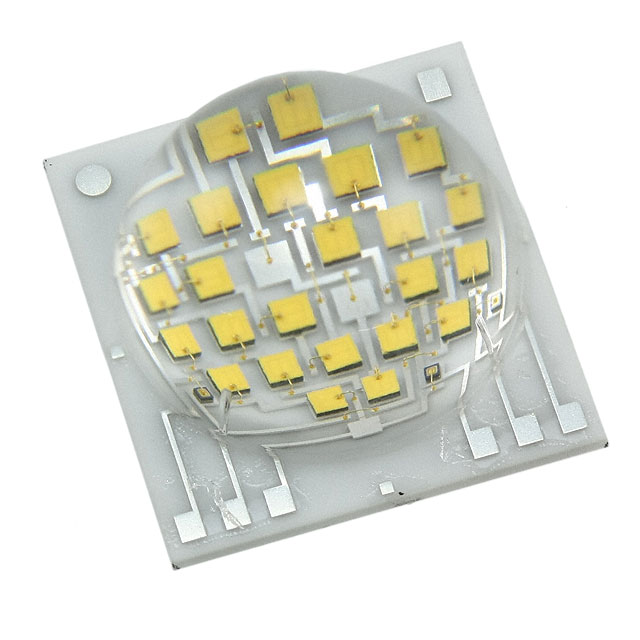

MPLEZW-A1-0000-0000C030F
