MCE4WT-A2-0000-000GAA
LED XLAMP WARM WHITE 2700K 8SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
Cree LED XLamp® MC-E Series LED, Warm White, 2700K CCT, 80 CRI. This 8-SMD component features a gull wing exposed pad package, measuring 7.00mm x 7.50mm with a maximum seated height of 4.60mm. Optimized for surface mounting, it operates at a typical forward voltage of 3.1V. The design supports multiple current configurations, with a test current of 4 x 350mA delivering 260 lumens (typical) and 47 lm/W efficiency. The maximum current rating is 4 x 700mA. The viewing angle is 110°. This component is commonly utilized in general lighting applications. Packaged on tape and reel.
Additional Information
Series: XLamp® MC-ERoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.276"" L x 0.295"" W (7.00mm x 7.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 4 x 350mA |
| Viewing Angle | 110° |
| Current - Max | 4 x 700mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 47 lm/W |
| Height - Seated (Max) | 0.181"" (4.60mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 (Typ) |
| Flux @ 25°C, Current - Test | 260lm (240lm ~ 280lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

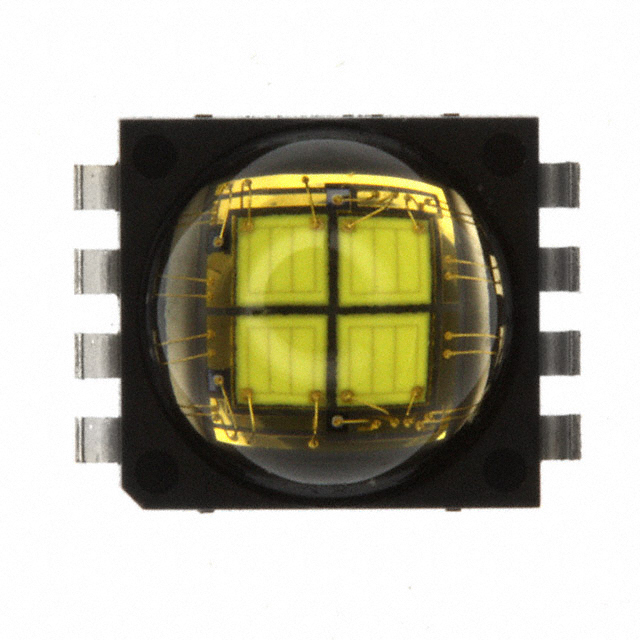

MCE4WT-A2-0000-000HE7
