JK3030AWT-P-B45EA0000-N0000001
LED J NEUTRAL WHT 4500K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

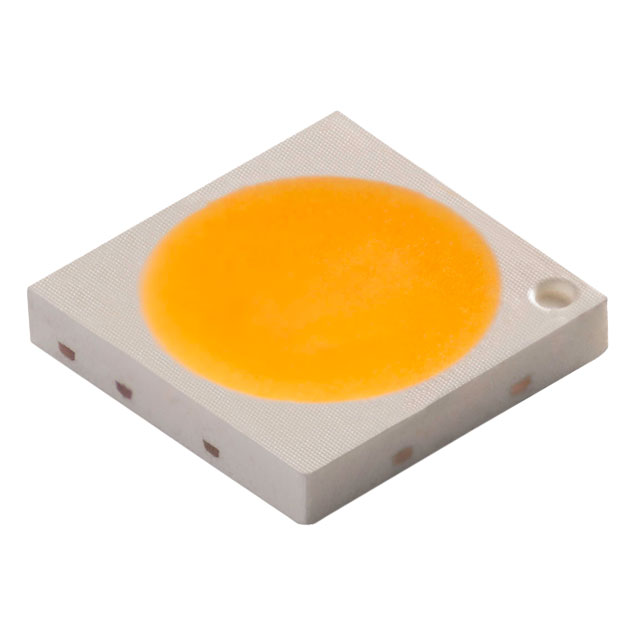

Cree LED J Series JK3030AWT-P-B45EA0000-N0000001 is a surface-mount LED designed for neutral white illumination. This component features a 4500K Correlated Color Temperature (CCT) and a typical forward voltage of 3.2V at a test current of 350mA. It delivers 156 lumens (Typ) with a luminous efficacy of 139 lm/W at the specified test conditions. The LED has a wide 120° viewing angle and a Color Rendering Index (CRI) of 70. Packaged in a 1212 (3030 Metric) SMD footprint, measuring 3.00mm x 3.00mm, it is supplied on tape and reel. This component is suitable for applications requiring efficient and broad illumination, commonly found in general lighting and display backlighting. The maximum forward current is rated at 400mA, with a seated height of 0.72mm.
Additional Information
Series: JRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 400mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 139 lm/W |
| Height - Seated (Max) | 0.028"" (0.72mm) |
| CCT (K) | 4500K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 156lm (Typ) |
| Flux @ 85°C, Current - Test | - |
