JE2835AWT-00-0000-000A0UF940E
LED J NEUTRAL WHT 4000K SMDManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More
The Cree LED J Series JE2835AWT-00-000A0UF940E is a surface mount LED designed for neutral white illumination, featuring a 4000K Correlated Color Temperature (CCT) and a high Color Rendering Index (CRI) of 90. This component offers a typical forward voltage of 3V and a test current of 150mA, producing a luminous flux of 64 lumens with a luminous efficacy of 142 lm/W. The LED has a wide viewing angle of 120 degrees and is packaged in a 1113 (2835 Metric) SMD case, measuring 3.50mm x 2.80mm with a maximum seated height of 0.90mm. It operates with a maximum current of 240mA and is supplied on tape and reel. This component is suitable for general lighting applications across various industries.
Additional Information
Series: JRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1113 (2835 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.138"" L x 0.110"" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 240mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 142 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | 64lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy
JQ5050AWT-00-0000-000C0BB450E
LED J COOL WHITE 5000K SMD
JE2835AWT-00-0000-000A0ZF730E
LED J WARM WHT 3000K SMD

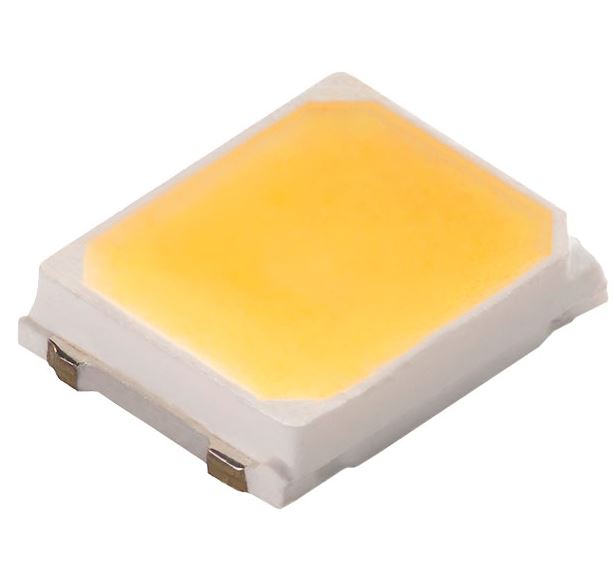

JE2835AWT-00-0000-000A0ZF835E
