CLA1B-MKW-XD0E0E53
LED CLA1B-WKW/MKW WARM WHT 4PLCCManufacturer: Cree LED
Categories: LED White Lighting
Quality Control: Learn More

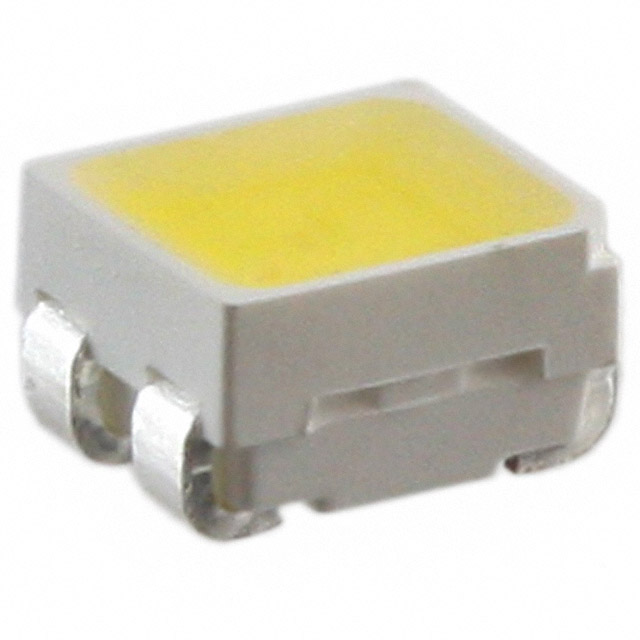

Cree LED CLA1B-MKW-XD0E0E53 is a warm white LED from the CLA1B-WKW/MKW series, housed in a 4-PLCC package. This surface-mount component operates with a typical forward voltage of 3.2V and a test current of 30mA, delivering 9 lumens of luminous flux with a CRI of 80. The LED features a wide viewing angle of 120° and a maximum forward current of 80mA, achieving a luminous efficacy of 35 lm/W at the test current. Its dimensions are 3.20mm x 2.80mm with a seated height of 2.10mm. This component is supplied in Tape & Reel (TR) packaging. It finds application in general illumination and automotive lighting sectors.
Additional Information
Series: CLA1B-WKW/MKWRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | White, Warm |
| Size / Dimension | 0.126"" L x 0.110"" W (3.20mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Current - Max | 80mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 35 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 9lm (6lm ~ 11lm) |
| Flux @ 85°C, Current - Test | - |
